880-02 02 04H-C-LM 1044
880-02 02 04H-C-LM 1044
Артикул:
5765680
В наличии
0 ₽
Характеристики
BN (Face land width)
0.06 mm
CBMD (Chip breaker manufacturers designation)
LM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
2.2 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-DE0202C0
GAN (Insert rake angle)
12.5 Degree
GB (Face land angle)
2.5 Degree
GRDMFG (Grade manufacturers designation)
1044
GRDPRIO (Standard designation of the grade main application)
HC

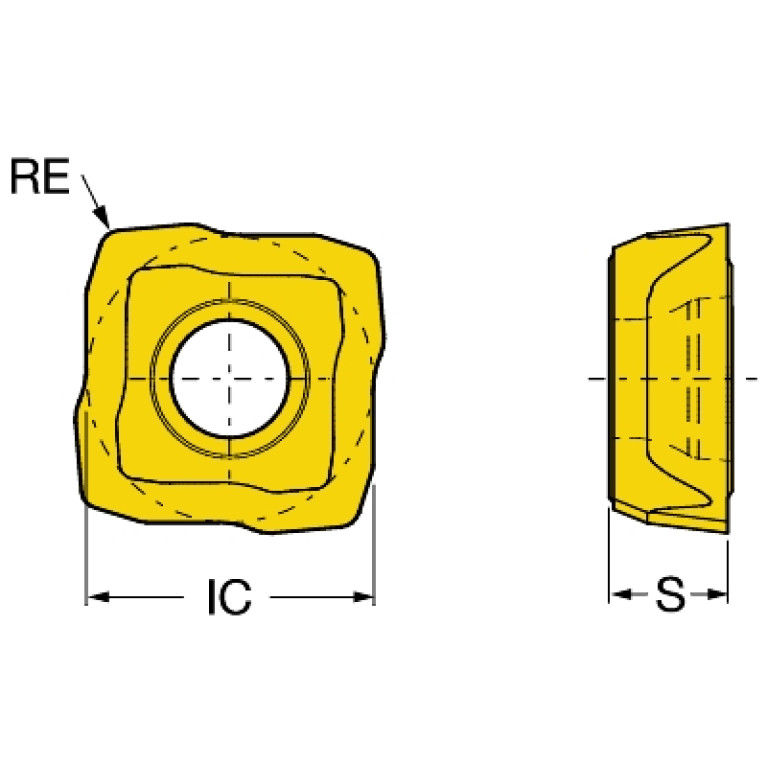

IC (Inscribed circle diameter)
4.9 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DE0202$$3RBC$$$
LOC-03 ISO
SV$$DE0202$$3RBC$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DE0202C0
Materials
P,M,K,N,S,H
RE (Corner radius)
0.4 mm
S (Insert thickness)
2.4 mm
S1 (Insert thickness total)
2.4 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
Working process
No working processes available
WT (Weight of item)
0.002 kg
