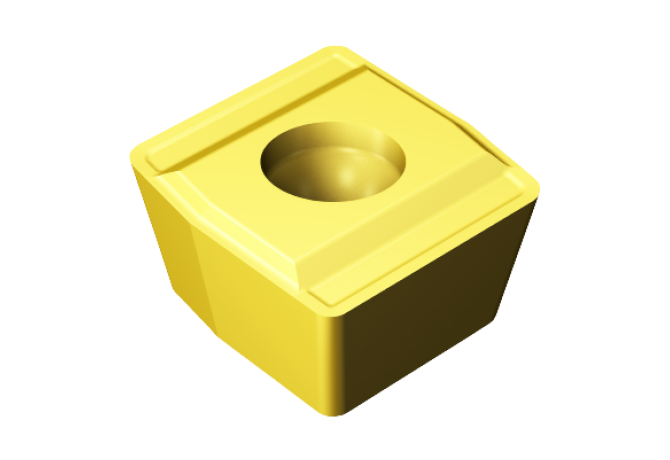

Главная Инструменты 201-00 - Regular Insert unspecified 800-11 T3 08H-P-G 1115

800-11 T3 08H-P-G 1115

Артикул: 6336380

В наличии

0 ₽

В корзину

Описание

Характеристики

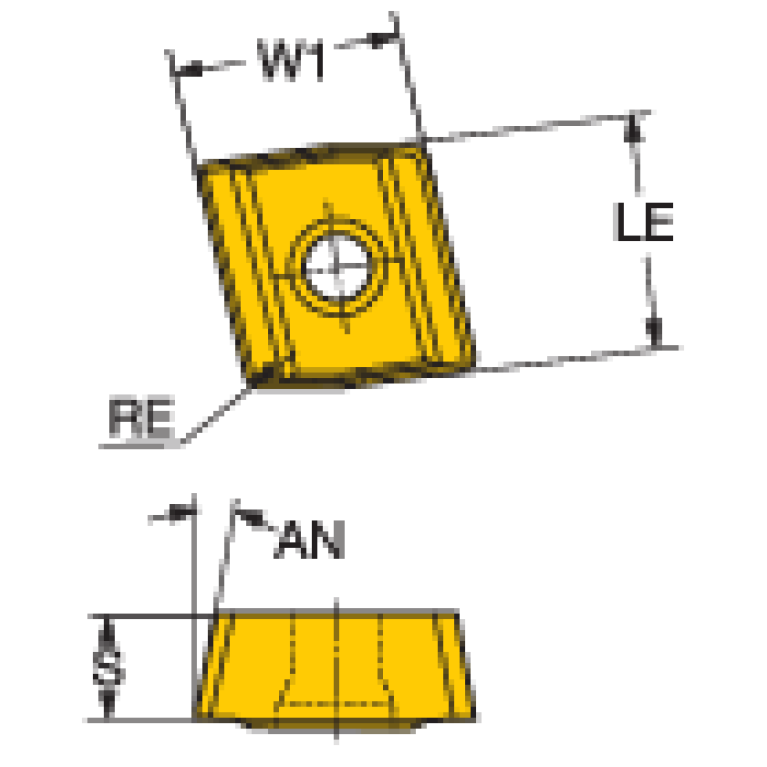

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

2.8 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DF11T3P0

GAN (Insert rake angle)

18 Degree

GRDMFG (Grade manufacturers designation)

1115

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DF11T3$$3RBP$$$

LOC-03 ISO

SV$$DF11T3$$3RBP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DF11T3P0

RE (Corner radius)

0.8 mm

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

9 mm

Working process

No working processes available

WT (Weight of item)

0.006 kg
