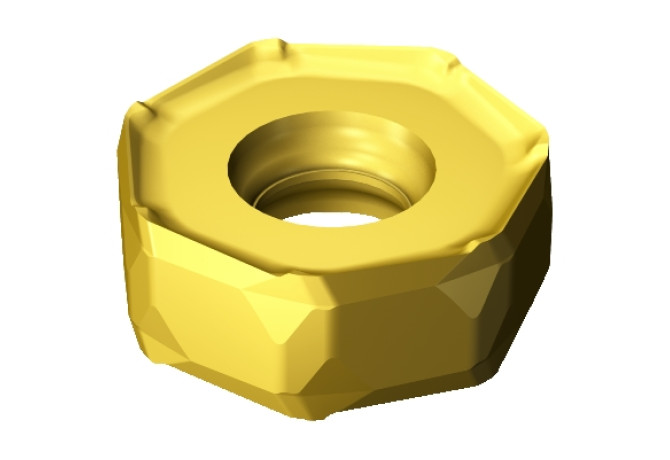

745R-2109E-M31 K20W
745R-2109E-M31 K20W
Артикул:
7046687
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
13 Degree
BN (Face land width)
0.2 mm
BS (Wiper edge length)
1.9 mm
CBMD (Chip breaker manufacturers designation)
M31
CECC (Cutting edge condition code)
T - Chamfered
COATN (Coating)
CVD TiCrN+Al2O3+TiN
D1 (Fixing hole diameter)
8.3 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-NN210900
EPSR (Insert included angle)
128.571 Degree
GAN (Insert rake angle)
44 Degree
GB (Face land angle)
-30 Degree
GRDMFG (Grade manufacturers designation)
K20W
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
21 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$NN2109$$3RB$$$$
KRINS (Cutting edge angle major)
42 Degree
L (Cutting edge length)
10.113 mm
LE (Cutting edge effective length)
7.1 mm
LOC-03 ISO
SV$$NN2109$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-NN210900
Materials
K
RE (Corner radius)
1 mm
S (Insert thickness)
9 mm
S1 (Insert thickness total)
9 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.03 kg
