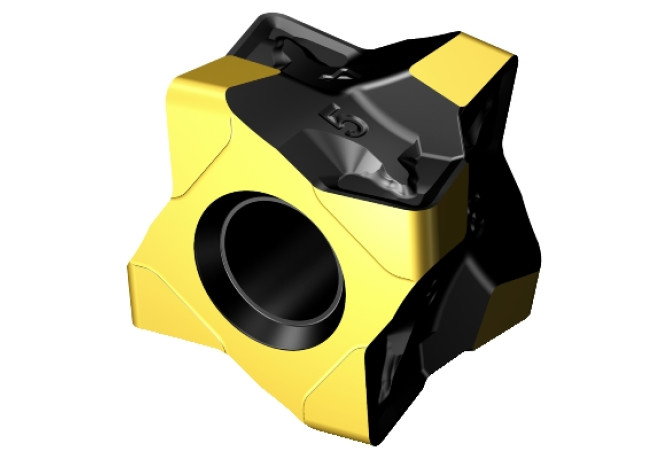

3-80-101112-8-M5 4325
3-80-101112-8-M5 4325
Артикул:
6814671
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
BN (Face land width)
0.25 mm
CBMD (Chip breaker manufacturers designation)
M5
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-TJ101100
EPSR (Insert included angle)
80 Degree
GAN (Insert rake angle)
18 Degree
GRDMFG (Grade manufacturers designation)
4325
GRDPRIO (Standard designation of the grade main application)
HC
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TJ1011122NA$$12

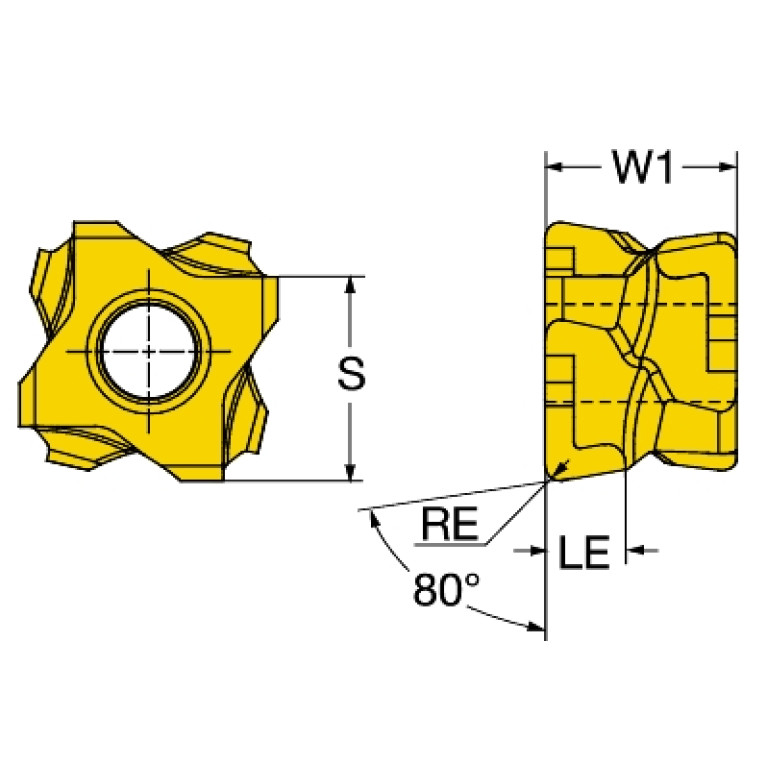

LE (Cutting edge effective length)
4 mm
LOC-03 ISO
SV$$TJ1011122NA$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TJ101100
Materials
P,K
RE (Corner radius)
1.191 mm
S (Insert thickness)
11 mm
S1 (Insert thickness total)
11 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
W1 (Insert width)
10 mm
Working process
No working processes available
WT (Weight of item)
0.012 kg
