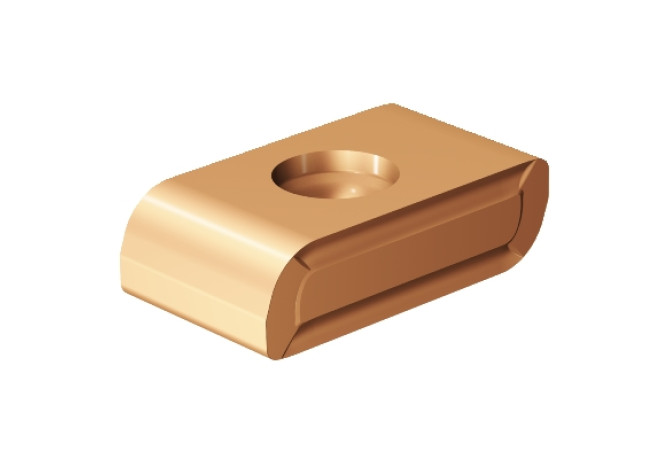

Главная Инструменты 201-00 - Regular Insert unspecified 170-22-281085E-PRLN 1030

170-22-281085E-PRLN 1030

Артикул: 6215361

В наличии

0 ₽

В корзину

Описание

Характеристики

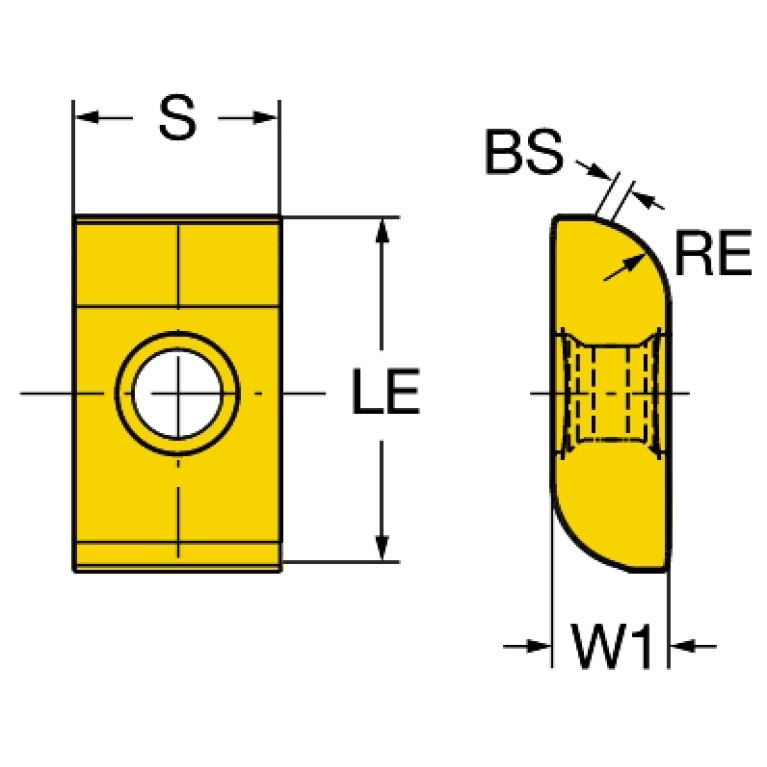

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

1 mm

CBMD (Chip breaker manufacturers designation)

PRLN

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

Constant Constant

D1 (Fixing hole diameter)

6 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-MN281000

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

1030

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MN2810$$3NB$$$$

L (Cutting edge length)

28 mm

LE (Cutting edge effective length)

28 mm

LOC-03 ISO

SV$$MN2810$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MN281000

Materials

P,M,N,S,H

RE (Corner radius)

8.5 mm

S (Insert thickness)

14 mm

S1 (Insert thickness total)

14 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

10 mm

Working process

No working processes available

WT (Weight of item)

0.047 kg
