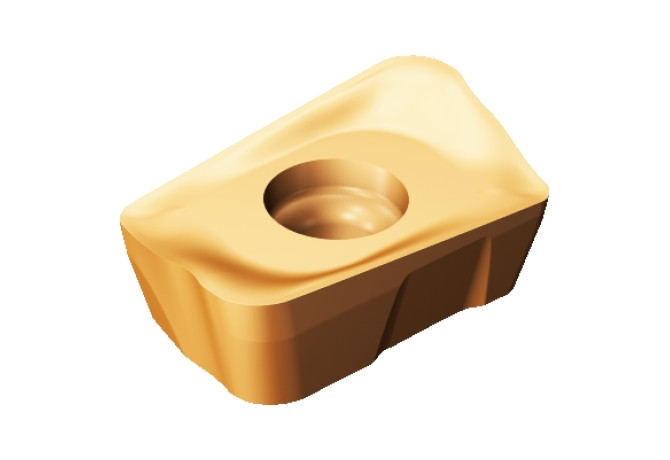

R390-18 06 20M-PM 1030
R390-18 06 20M-PM 1030
Артикул:
5745969
В наличии
0 ₽
Характеристики

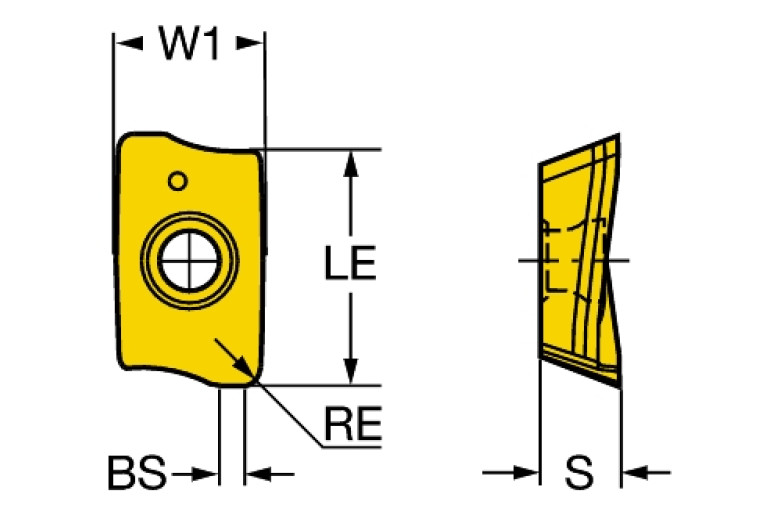

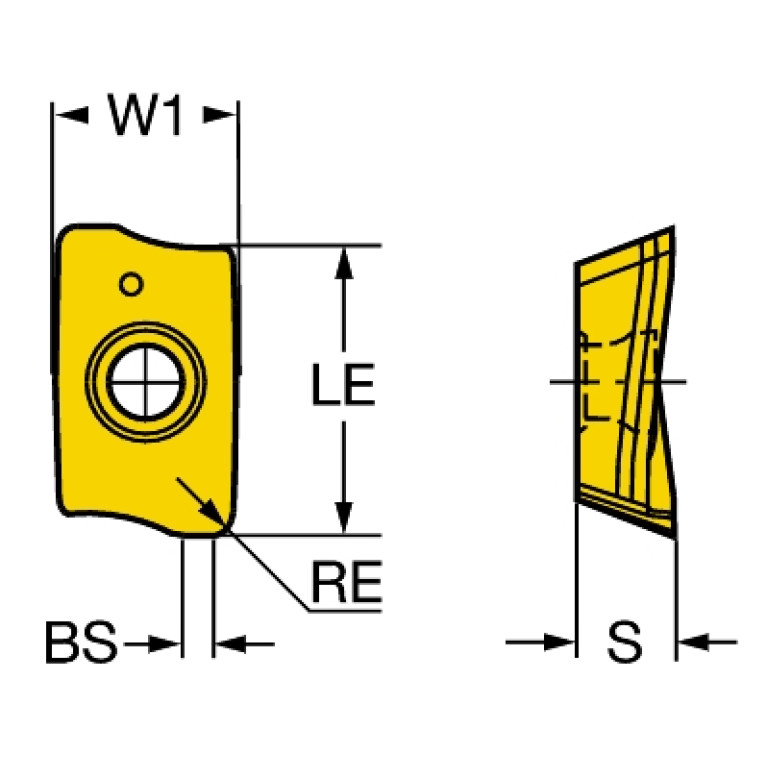

AN (Clearance angle major)
11 Degree
BS (Wiper edge length)
0.5 mm
CBMD (Chip breaker manufacturers designation)
PM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
4.15 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-MH180600
GRDMFG (Grade manufacturers designation)
1030
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
11 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MH1806203RB$$20
KRINS (Cutting edge angle major)
90 Degree
L (Cutting edge length)
18.45 mm
LE (Cutting edge effective length)
15.4 mm
LOC-03 ISO
SV$$MH1806203RB$$20
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MH180600
Materials
P,M,N,S,H
NOI (Insert index count)
2
RE (Corner radius)
2 mm
S (Insert thickness)
6.33 mm
S1 (Insert thickness total)
6.33 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
W1 (Insert width)
11 mm
Working process
No working processes available
WT (Weight of item)
0.011 kg
