R390-17 04 31M-PM 1025
R390-17 04 31M-PM 1025
Артикул:
5745882
В наличии
0 ₽

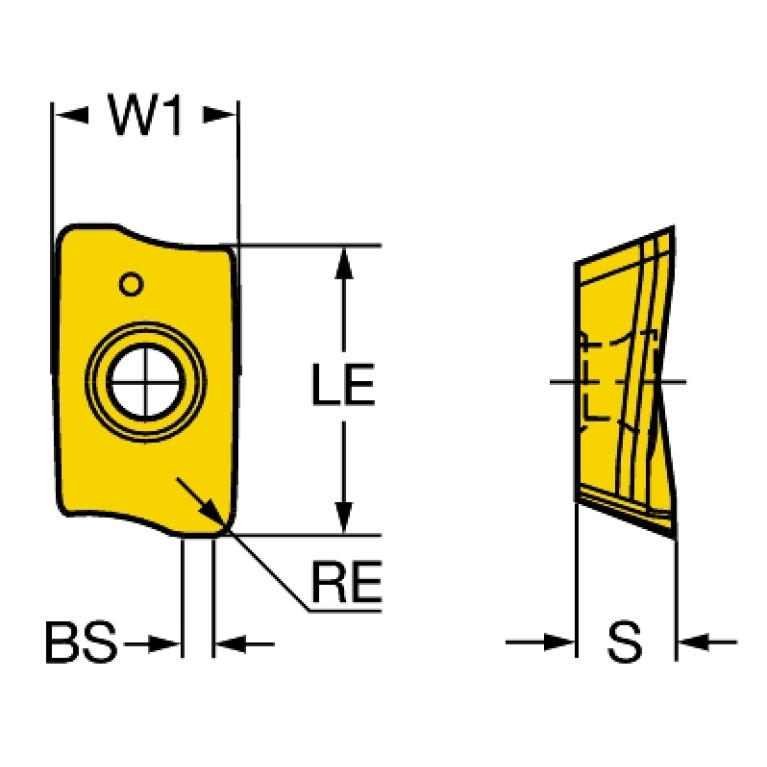

Характеристики
AN (Clearance angle major)
19 Degree
CBMD (Chip breaker manufacturers designation)
PM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiCN+TiN
D1 (Fixing hole diameter)
4.1 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-MH170400
GRDMFG (Grade manufacturers designation)
1025
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.6 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MH1704313RB$$31
L (Cutting edge length)
17.45 mm
LE (Cutting edge effective length)
15.7 mm
LOC-03 ISO
SV$$MH1704313RB$$31
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MH170400
Materials
P,M,K,N,S,H
NOI (Insert index count)
2
RE (Corner radius)
3.1 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
W1 (Insert width)
9.6 mm
Working process
No working processes available
WT (Weight of item)
0.006 kg
