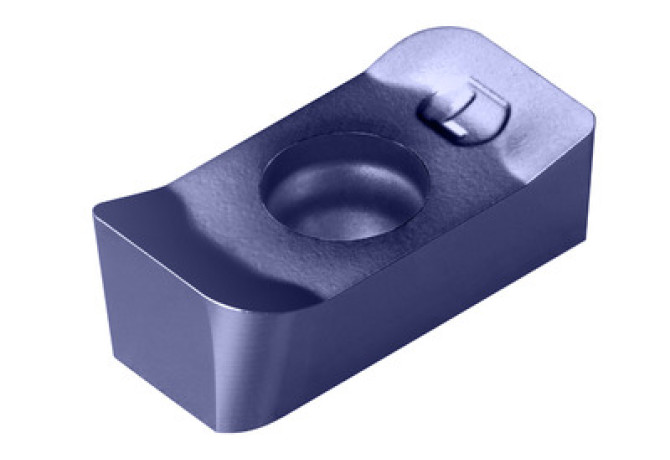

R331.1A-14 50 63H-WL1230
R331.1A-14 50 63H-WL1230
Артикул:
8519403
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
1.6 mm
CBMD (Chip breaker manufacturers designation)
WL
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
TiAlSiN
D1 (Fixing hole diameter)
4.6 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
1230
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
11.5 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MW14$$633RB$$63
KRINS (Cutting edge angle major)
90 Degree
L (Cutting edge length)
14.5 mm
LE (Cutting edge effective length)
13.7 mm
LOC-03 ISO
SV$$MW14$$633RB$$63
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Materials
P,M,S
NOI (Insert index count)
4
S (Insert thickness)
4.95 mm
S1 (Insert thickness total)
4.95 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
W1 (Insert width)
11.5 mm
Working process
No working processes available
WT (Weight of item)
0.008 kg
