N331.1A-04 35 05H-MM1040
N331.1A-04 35 05H-MM1040
Артикул:
5888497
В наличии
0 ₽
Характеристики

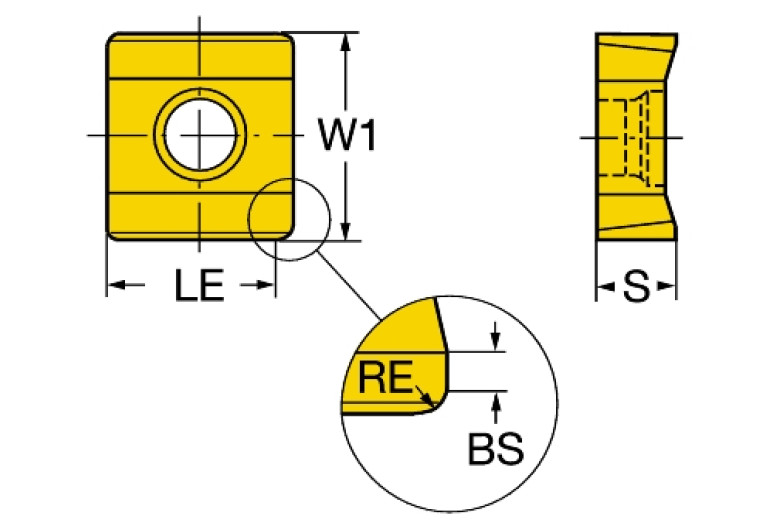

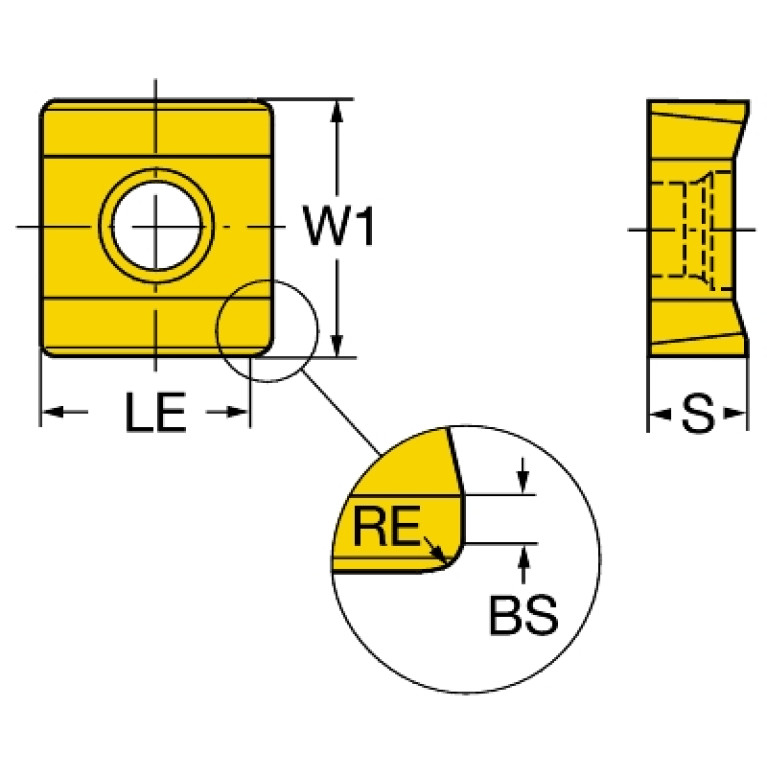

AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
0.4 mm
CBMD (Chip breaker manufacturers designation)
MM
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
2.6 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-MW040000
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
1040
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.5 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MW04$$053NB$$05
KRINS (Cutting edge angle major)
90 Degree
L (Cutting edge length)
5.1 mm
LE (Cutting edge effective length)
4.6 mm
LOC-03 ISO
SV$$MW04$$053NB$$05
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MW040000
Materials
P,M
NOI (Insert index count)
8
RE (Corner radius)
0.5 mm
S (Insert thickness)
3.5 mm
S1 (Insert thickness total)
3.5 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
W1 (Insert width)
9.5 mm
Working process
No working processes available
WT (Weight of item)
0.002 kg
