Главная Инструменты 201-04 - Rectangular insert LNUX 19 19 40-PM 4215

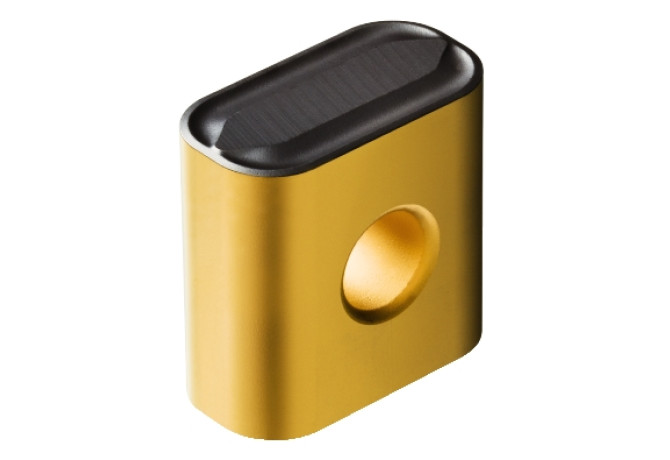

LNUX 19 19 40-PM 4215

Артикул: 5734459

В наличии

0 ₽

В корзину

Описание

Характеристики

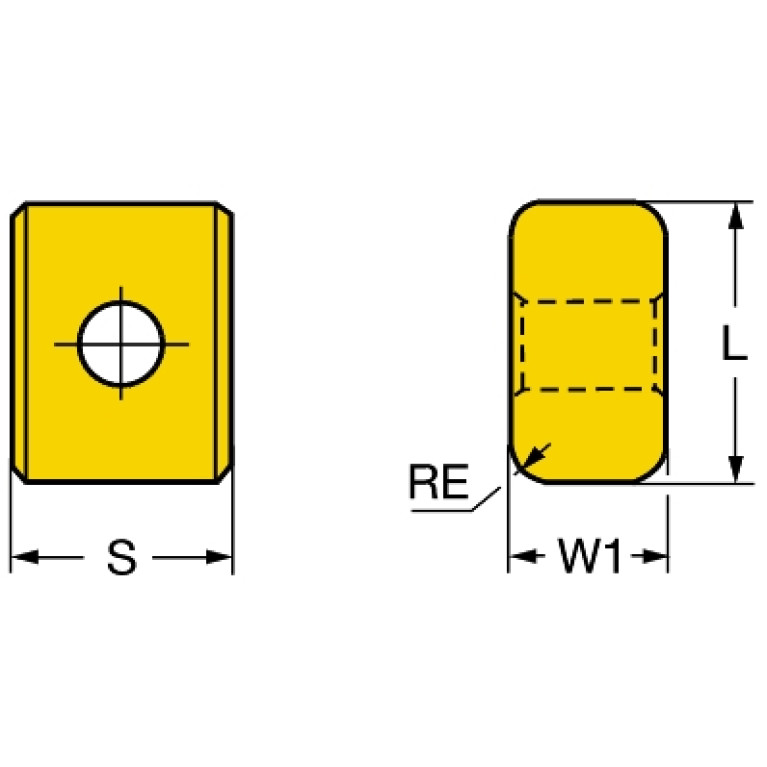

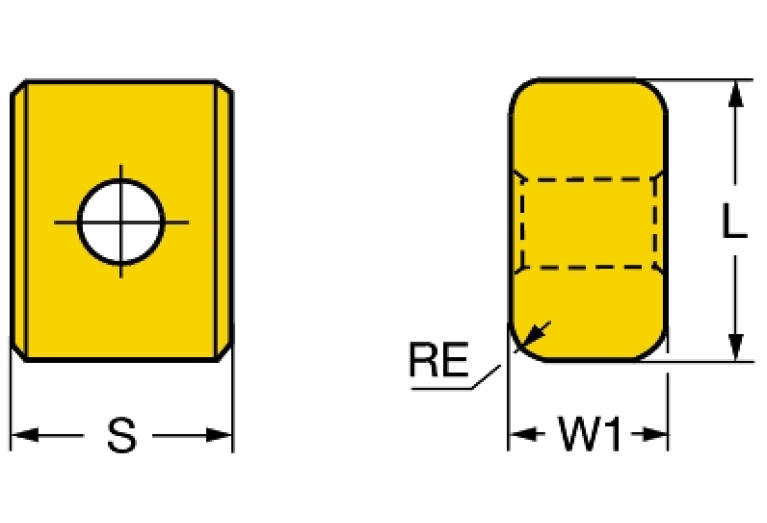

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

6.35 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

LN1919402N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4215

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

10 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$LN1919402NA$$40

L (Cutting edge length)

19.05 mm

LE (Cutting edge effective length)

15.05 mm

LOC-03 ISO

ISO$LN1919402NA$$40

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LN1919402N

Materials

MIID (Master insert identification)

LNUX191940 4215

NOI (Insert index count)

RE (Corner radius)

4 mm

S (Insert thickness)

19.05 mm

S1 (Insert thickness total)

19.05 mm

STDDES (Standard designation)

LNUX191940

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

U - Not treated

W1 (Insert width)

10 mm

Working process

No working processes available

WT (Weight of item)

0.043 kg
