Главная Инструменты 201-04 - Rectangular insert LNMX 30 19 40-PR 4415

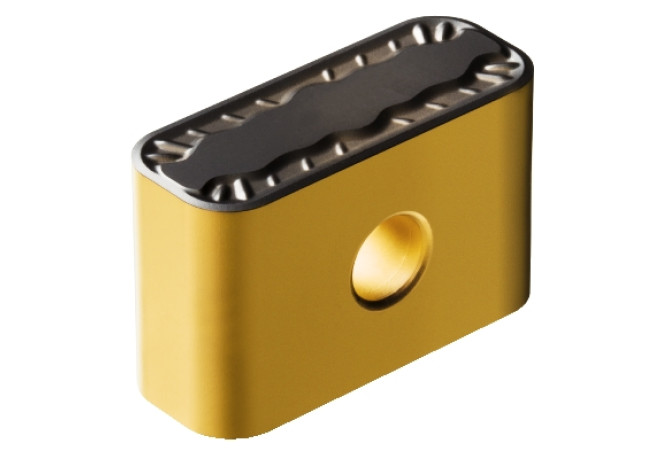

LNMX 30 19 40-PR 4415

Артикул: 8272125

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

TiN

D1 (Fixing hole diameter)

6.35 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4415

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

ISISO (ISO property)

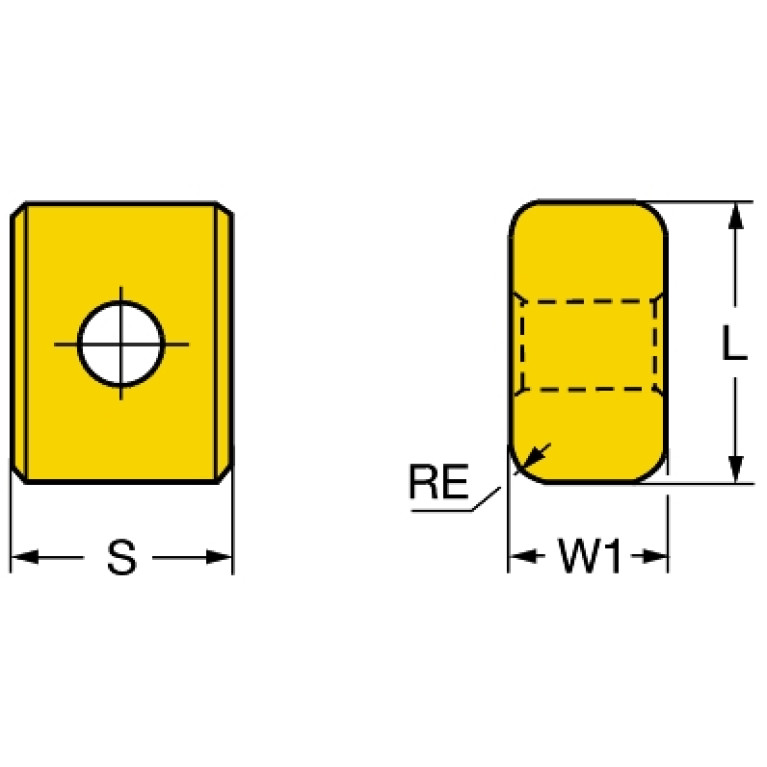

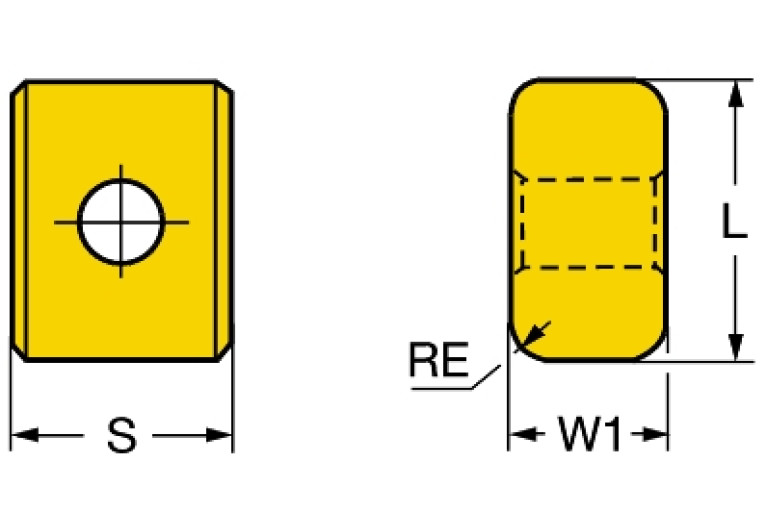

L (Cutting edge length)

30 mm

LE (Cutting edge effective length)

26 mm

Materials

NOI (Insert index count)

RE (Corner radius)

4 mm

S (Insert thickness)

19.05 mm

S1 (Insert thickness total)

19.05 mm

STDDES (Standard designation)

LNMX301940

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

12 mm

Working process

No working processes available

WT (Weight of item)

0.085 kg
