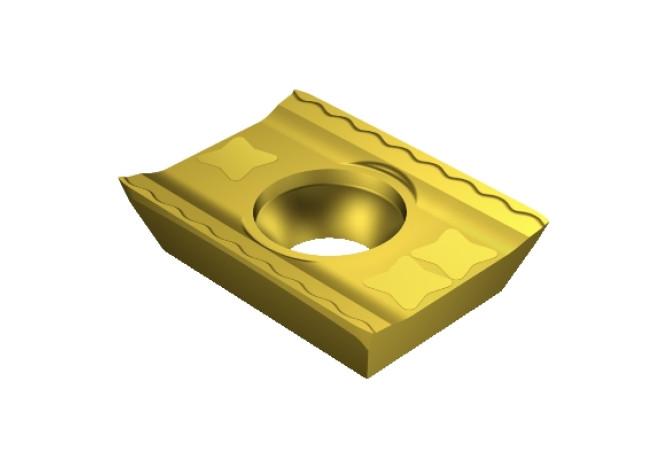

LDHT 19 04 00-ML 1025

Артикул: 5733675

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

15 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiCN+TiN

D1 (Fixing hole diameter)

5.7 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

LD1904023N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

13.767 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$LD1904023NB$$02

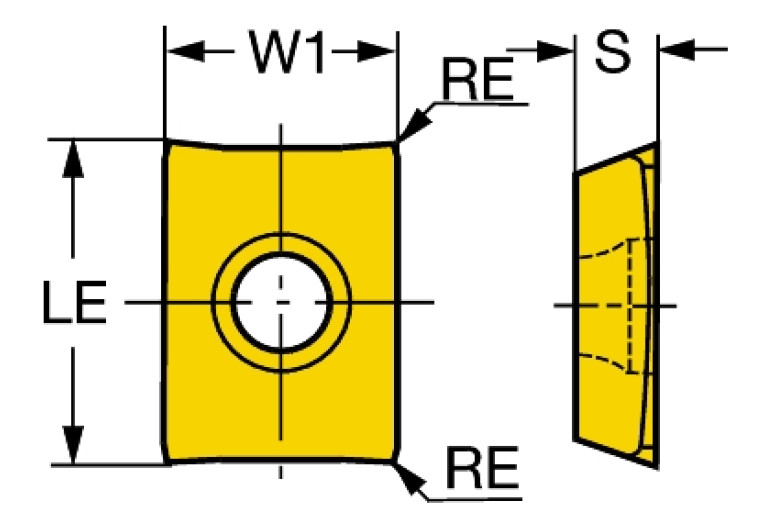

LE (Cutting edge effective length)

19.1 mm

LOC-03 ISO

ISO$LD1904023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LD1904023N

Materials

P,M,K,N,S,H

MIID (Master insert identification)

LDHT190400 1025

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

4.75 mm

S1 (Insert thickness total)

4.75 mm

STDDES (Standard designation)

LDHT190400

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

13.767 mm

Working process

No working processes available

WT (Weight of item)

0.01 kg
