Главная Инструменты 201-04 - Rectangular insert 5B90N-0905H-PS2-NW CD07

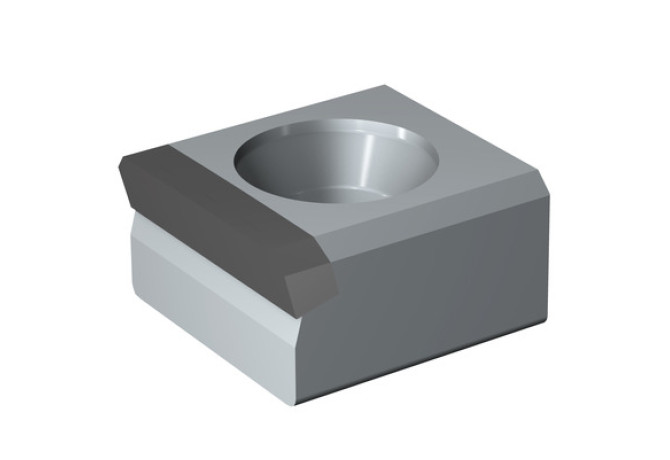

5B90N-0905H-PS2-NW CD07

Артикул: 7211516

В наличии

0 ₽

В корзину

Описание

Характеристики

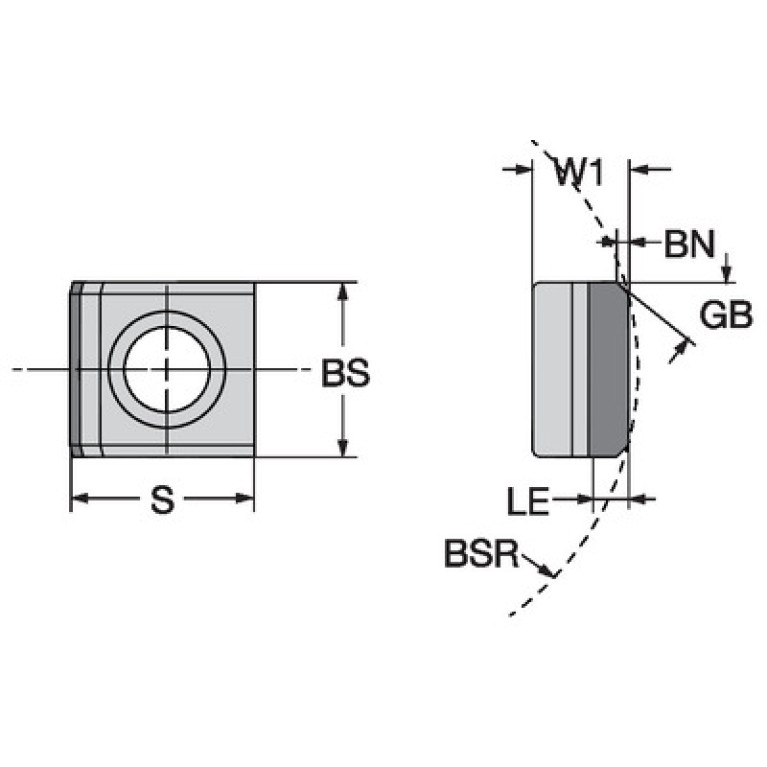

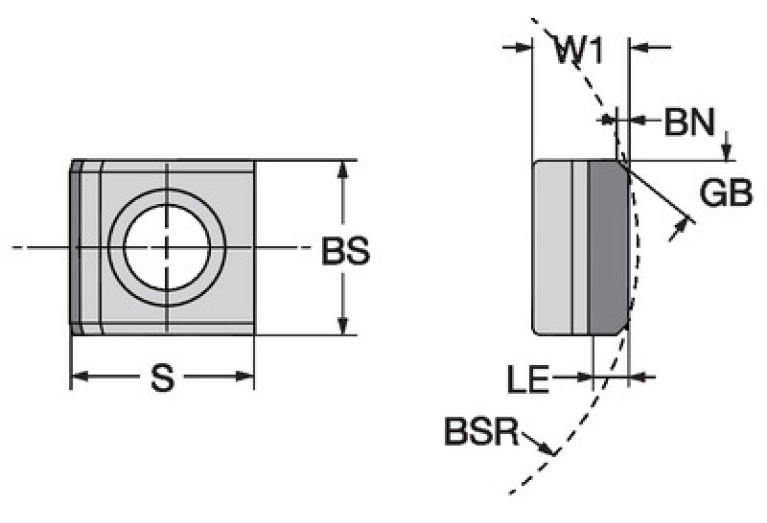

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.6 mm

BS (Wiper edge length)

9 mm

CBMD (Chip breaker manufacturers designation)

Delivery state valid from

12/1/2023

DIN

SV-NT090500

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

15 Degree

GB (Face land angle)

30 Degree

GRDMFG (Grade manufacturers designation)

CD07

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

5 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NT0905$$3NA$$$$

KCH (Corner chamfer angle)

90 Degree

KRINS (Cutting edge angle major)

1.65 Degree

L (Cutting edge length)

9 mm

LOC-03 ISO

SV$$NT0905$$3NA$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NT090500

Materials

NOI (Insert index count)

S (Insert thickness)

9.5 mm

S1 (Insert thickness total)

9.5 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

5 mm

Working process

No working processes available

WT (Weight of item)

0.004 kg
