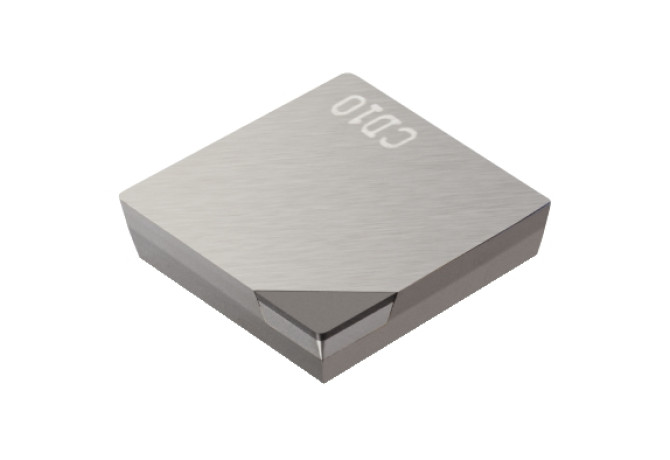

Главная Инструменты 201-02 - Square insert SPUN120304FP CD10

SPUN120304FP CD10

SPUN120304FP CD10 SPUN120304FP CD10 SPUN120304FP CD10

SPUN120304FP CD10

SV - Sandvik-Coromant
Артикул: 5751318
В наличии
0 ₽
В корзину
Описание
Характеристики

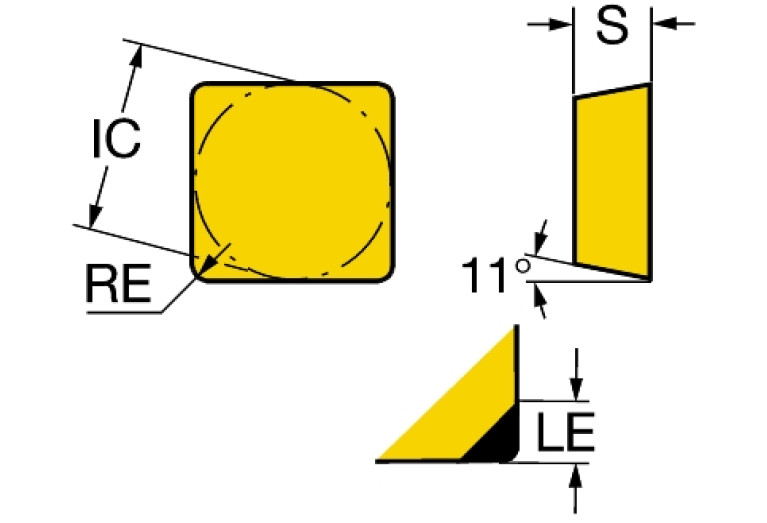

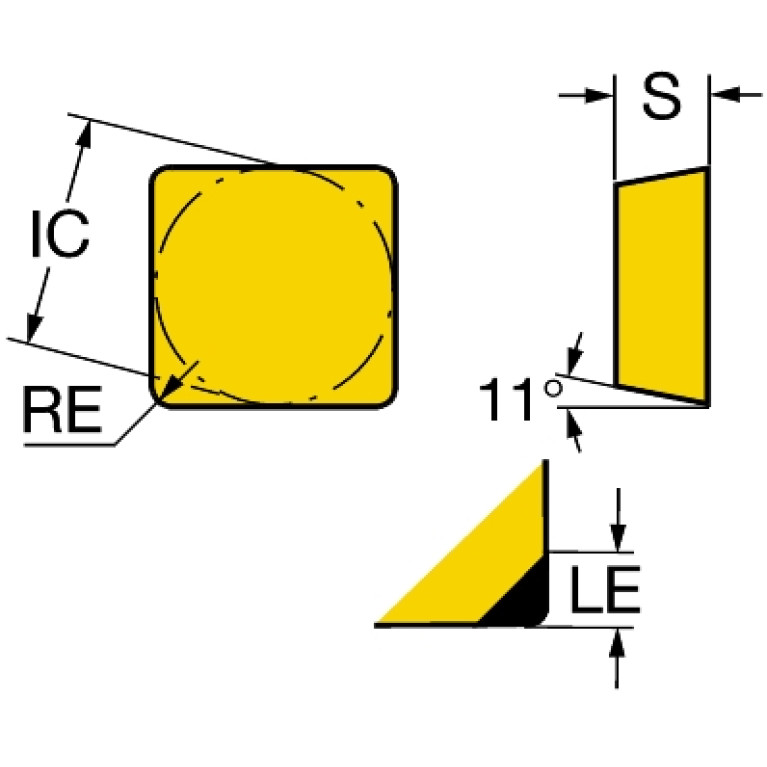

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
FP
CECC (Cutting edge condition code)
E - Rounded
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SP1203041N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
CD10
GRDPRIO (Standard designation of the grade main application)
DP
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SP1203041NA$$04
L (Cutting edge length)
12.7 mm
LE (Cutting edge effective length)
4.6 mm
LOC-03 ISO
ISO$SP1203041NA$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SP1203041N
Materials
N
MIID (Master insert identification)
SPUN120304 CD10
NOI (Insert index count)
1
RE (Corner radius)
0.397 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
SPUN120304
STDDESAnsi (Standard designation ANSI)
SPUN421
TCE (Tipped cutting edge code)
A
TCINS (Tolerance class insert)
U - Not treated
Working process
No working processes available
WT (Weight of item)
0.007 kg
