SPUN 19 04 12 3225
SPUN 19 04 12 3225
Артикул:
6868401
В наличии
0 ₽
Характеристики

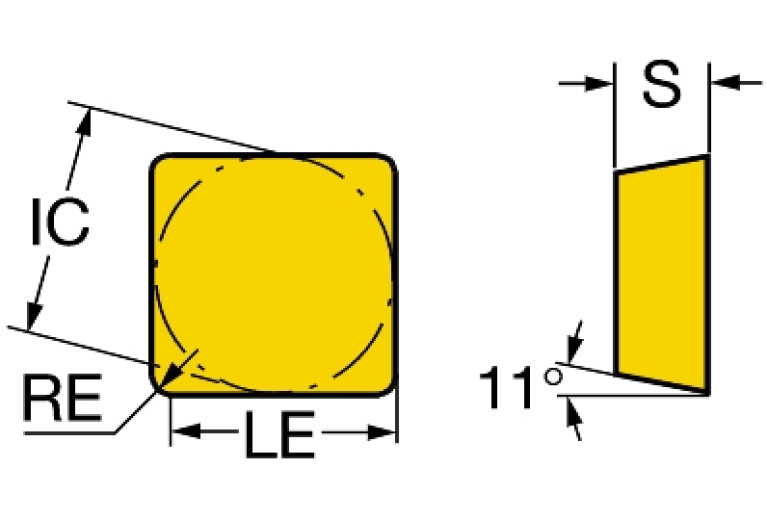

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
PUN
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SP1904121N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
3225
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SP1904121NA$$12
L (Cutting edge length)
19.05 mm
LE (Cutting edge effective length)
17.85 mm
LOC-03 ISO
ISO$SP1904121NA$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SP1904121N
Materials
K
MIID (Master insert identification)
SPUN190412 3225
NOI (Insert index count)
4
RE (Corner radius)
1.191 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
SPUN190412
STDDESAnsi (Standard designation ANSI)
SPUN633
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
U - Not treated
Working process
No working processes available
WT (Weight of item)
0.023 kg
