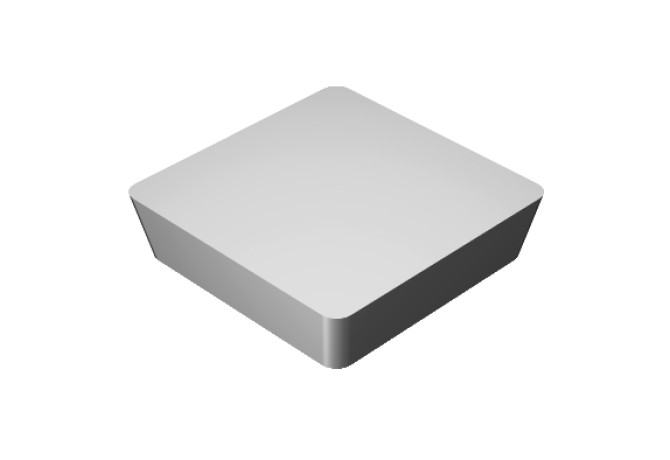

SPUN 09 03 08 H1P
SPUN 09 03 08 H1P
Артикул:
5751262
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
PUN
CECC (Cutting edge condition code)
E - Rounded
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SP0903081N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
H1P
GRDPRIO (Standard designation of the grade main application)
HW

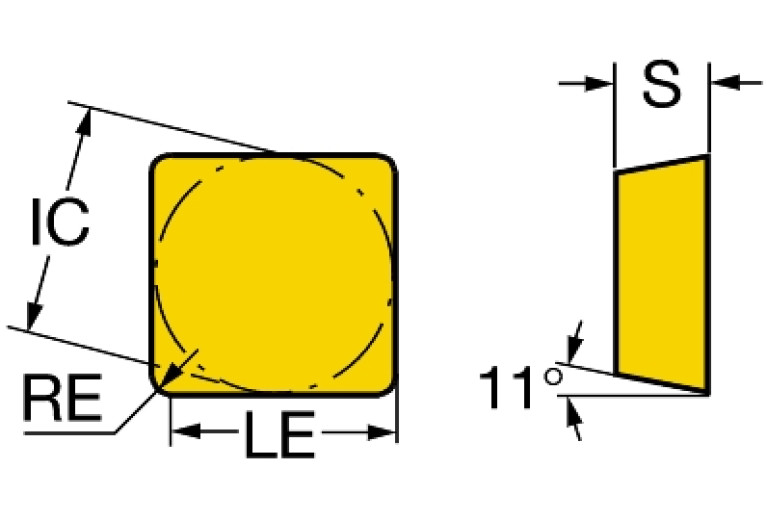

IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SP0903081NA$$08
L (Cutting edge length)
9.525 mm
LE (Cutting edge effective length)
8.725 mm
LOC-03 ISO
ISO$SP0903081NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SP0903081N
MIID (Master insert identification)
SPUN090308 H1P
NOI (Insert index count)
4
RE (Corner radius)
0.794 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
SPUN090308
STDDESAnsi (Standard designation ANSI)
SPUN322
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
U - Not treated
Working process
No working processes available
WT (Weight of item)
0.004 kg
