Главная Инструменты 201-02 - Square insert SPMT1810-BM 1145

SPMT1810-BM 1145

Артикул: 7207495

В наличии

0 ₽

В корзину

Описание

Характеристики

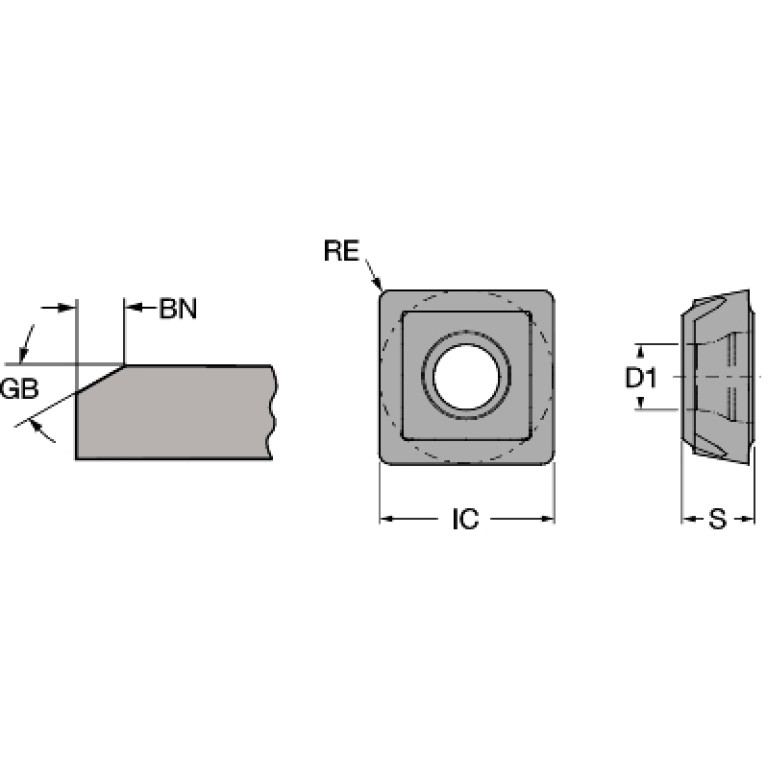

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.15 mm

BS (Wiper edge length)

0.3 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

4.7 mm

Delivery state valid from

12/1/2023

DIN

SV-TM180600

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

15 Degree

GB (Face land angle)

2.5 Degree

GRDMFG (Grade manufacturers designation)

1145

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

18.6 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TM1806$$3NB$$$$

L (Cutting edge length)

18.6 mm

LOC-03 ISO

SV$$TM1806$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TM180600

NOI (Insert index count)

RE (Corner radius)

1 mm

S (Insert thickness)

5.5 mm

S1 (Insert thickness total)

5.5 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.023 kg
