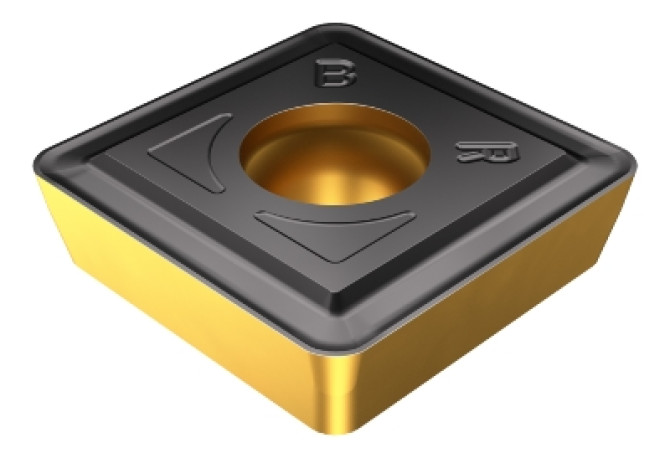

SPMT1212-BR 4425
SPMT1212-BR 4425
Артикул:
7860969
В наличии
0 ₽
Характеристики

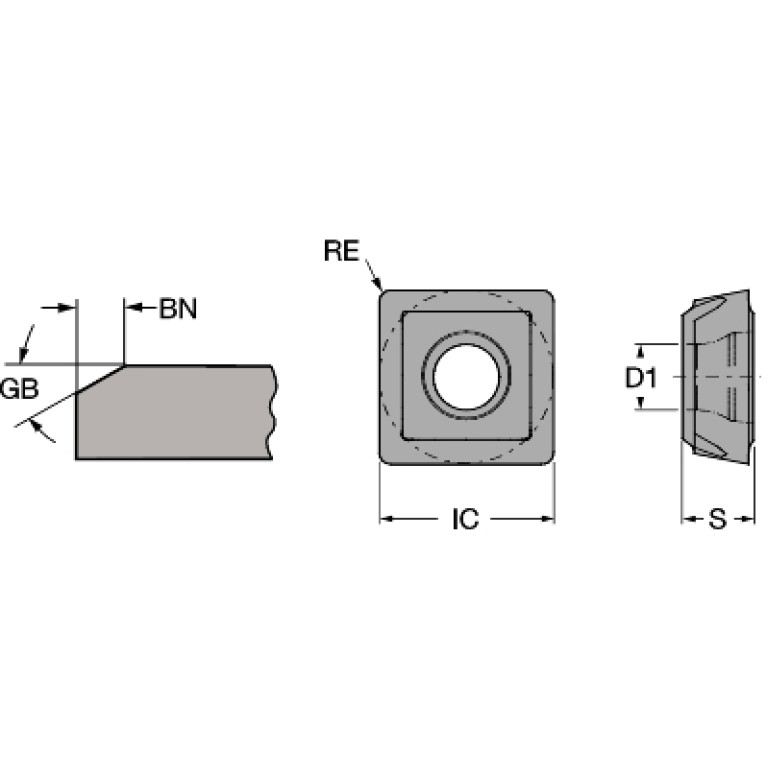

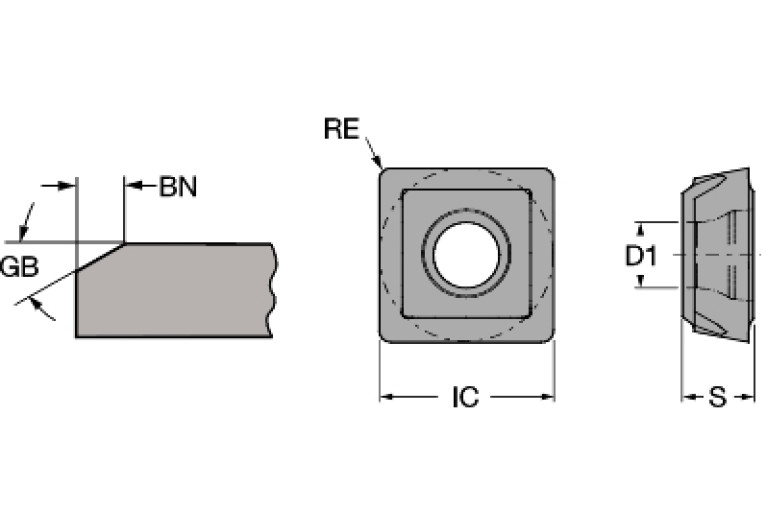

AN (Clearance angle major)
11 Degree
BN (Face land width)
0.15 mm
BS (Wiper edge length)
0.3 mm
CBMD (Chip breaker manufacturers designation)
BR
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-TM120400
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
12.5 Degree
GB (Face land angle)
5 Degree
GRDMFG (Grade manufacturers designation)
4425
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12.65 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TM1204$$3NB$$$$
L (Cutting edge length)
12.65 mm
LOC-03 ISO
SV$$TM1204$$3NB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TM120400
Materials
P
NOI (Insert index count)
4
RE (Corner radius)
1.2 mm
S (Insert thickness)
4 mm
S1 (Insert thickness total)
4 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.007 kg
