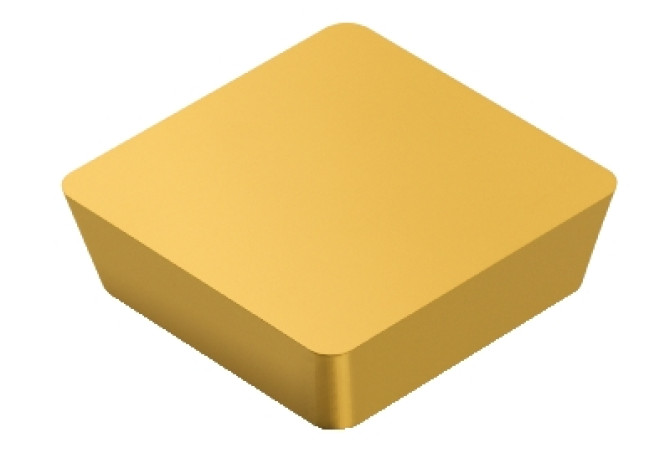

Главная Инструменты 201-02 - Square insert SPMN 15 04 12 235

SPMN 15 04 12 235

Артикул: 5751571

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SP1504121N

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

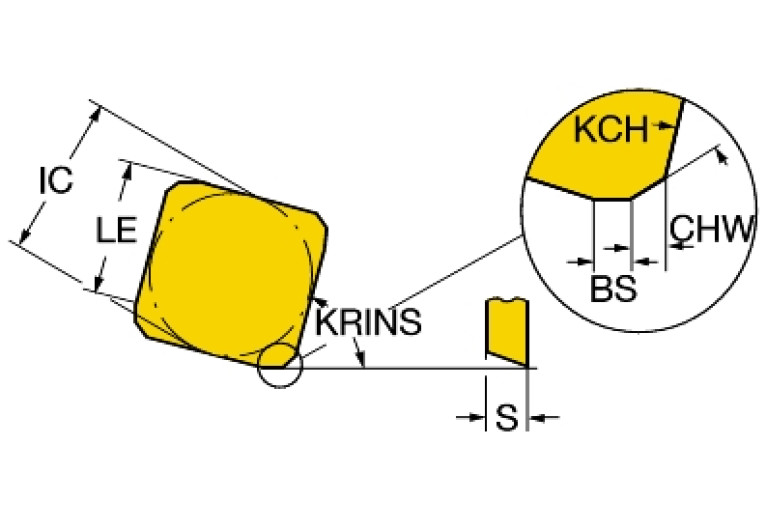

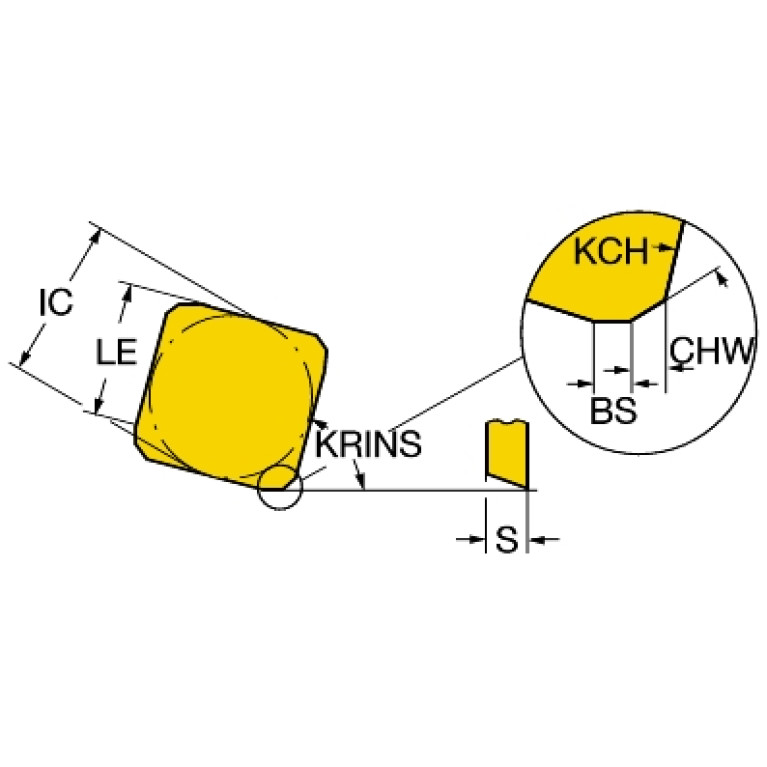

IC (Inscribed circle diameter)

15.875 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SP1504121NA$$12

L (Cutting edge length)

15.875 mm

LE (Cutting edge effective length)

14.6 mm

LOC-03 ISO

ISO$SP1504121NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1504121N

Materials

P,M

MIID (Master insert identification)

SPMN150412 235

NOI (Insert index count)

RE (Corner radius)

1.2 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

SPMN150412

STDDESAnsi (Standard designation ANSI)

SPMN533

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.016 kg
