SPMN 12 03 08 235

SPMN 12 03 08 235

SV - Sandvik-Coromant
Артикул: 5751594
В наличии
0 ₽
В корзину
Характеристики
AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+TiN
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SP1203081N
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
235
GRDPRIO (Standard designation of the grade main application)
HC

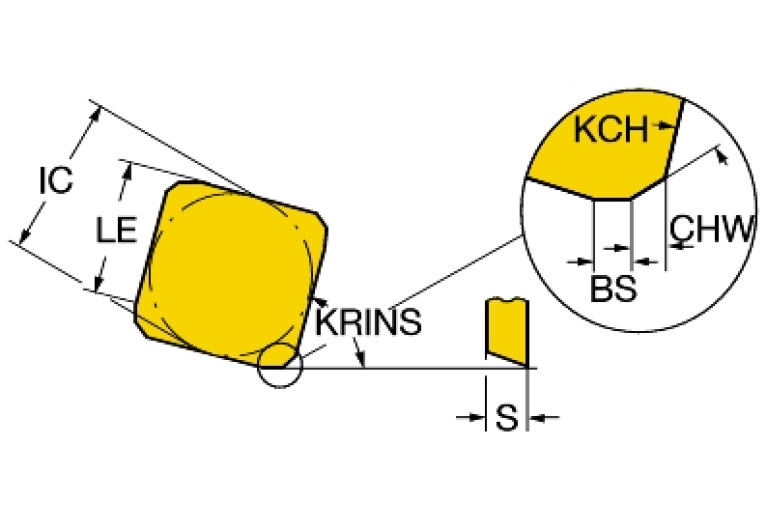

IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SP1203081NA$$08
L (Cutting edge length)
12.7 mm
LE (Cutting edge effective length)
11.9 mm
LOC-03 ISO
ISO$SP1203081NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SP1203081N
Materials
P,M
MIID (Master insert identification)
SPMN120308 235
NOI (Insert index count)
4
RE (Corner radius)
0.8 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
SPMN120308
STDDESAnsi (Standard designation ANSI)
SPMN422
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.007 kg
