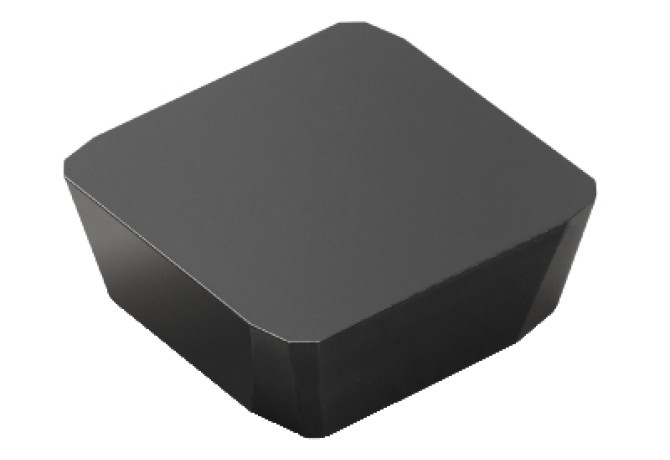

SPKN 15 04 ED R 3040

Артикул: 5751035

В наличии

0 ₽

В корзину

Описание

Характеристики

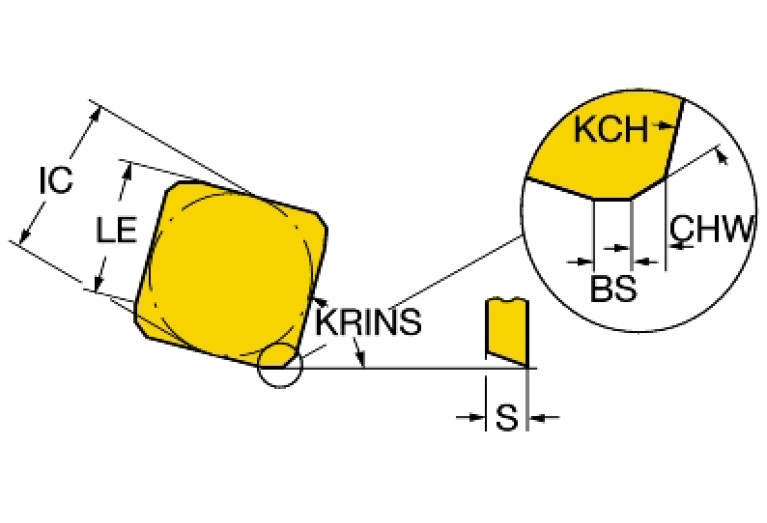

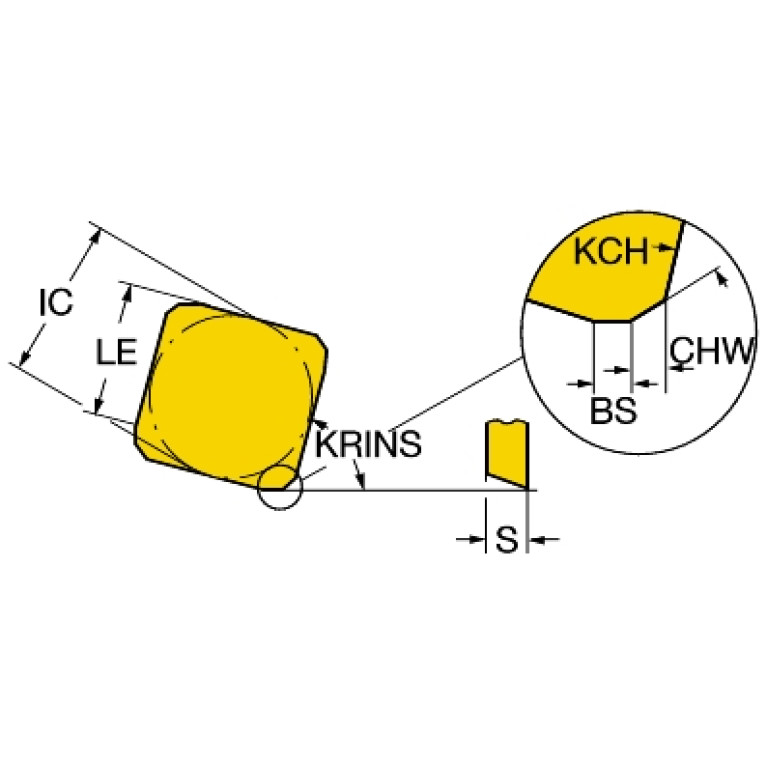

AN (Clearance angle major)

11 Degree

AS (Clearance angle wiper edge)

15 Degree

BS (Wiper edge length)

1.4 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

F - Sharpedged

CHW (Corner chamfer width)

0.8 mm

COATN (Coating)

CVD TiCN+Al2O3

Delivery state valid from

12/1/2023

DIN

SP1504ED1R

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

3040

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

15.875 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SP1504$$1RAED$$

KCH (Corner chamfer angle)

37 Degree

KRINS (Cutting edge angle major)

75 Degree

L (Cutting edge length)

15.875 mm

LE (Cutting edge effective length)

13.5 mm

LOC-03 ISO

ISO$SP1504$$1RAED$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1504ED1R

Materials

P,K,H

NOI (Insert index count)

RE (Corner radius)

0.85 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.015 kg
