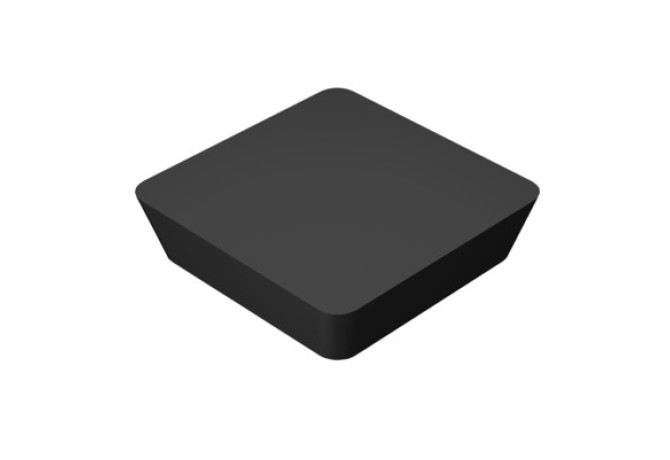

Главная Инструменты 201-02 - Square insert SPGN120412T01020 650

SPGN120412T01020 650

Артикул: 5750986

В наличии

0 ₽

В корзину

Описание

Характеристики

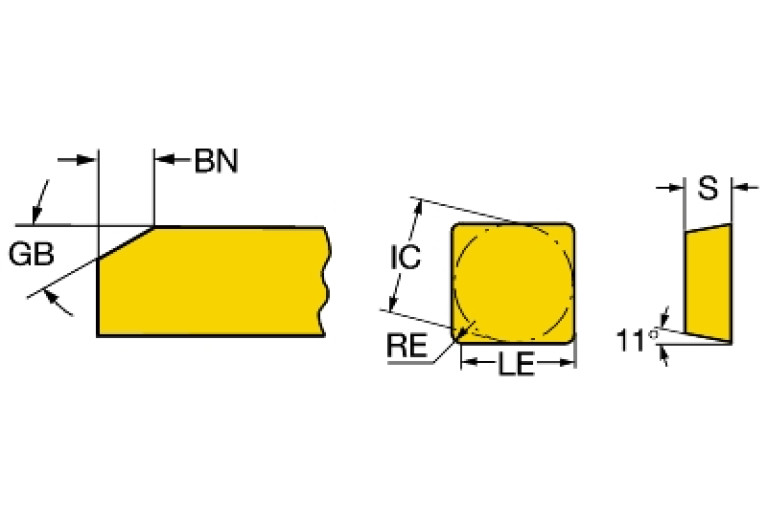

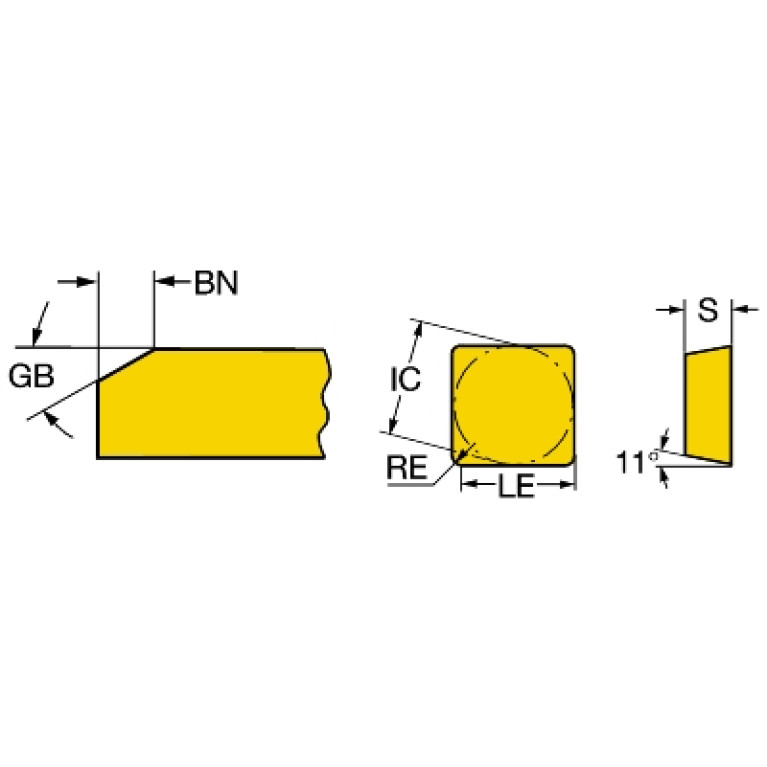

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SP1204121N

EPSR (Insert included angle)

90 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

650

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SP1204121NA$$12

L (Cutting edge length)

12.7 mm

LE (Cutting edge effective length)

11.5 mm

LOC-03 ISO

ISO$SP1204121NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204121N

Materials

K,S,H

MIID (Master insert identification)

SPGN120412 650

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

SPGN120412

STDDESAnsi (Standard designation ANSI)

SPGN433

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.003 kg
