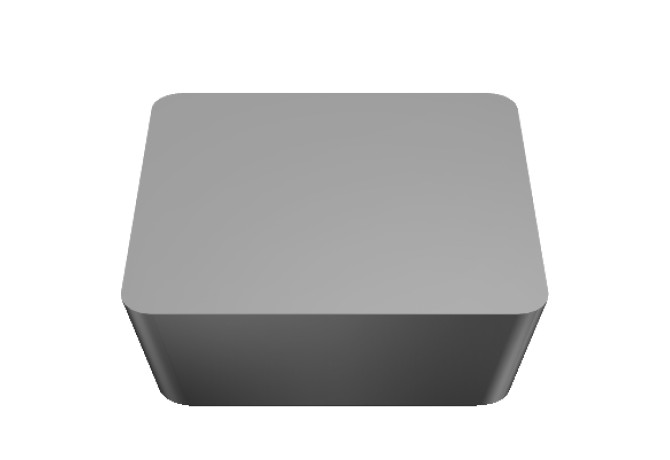

Главная Инструменты 201-02 - Square insert SPGN 19 04 08 H13A

SPGN 19 04 08 H13A

Артикул: 5750958

В наличии

0 ₽

В корзину

Описание

Характеристики

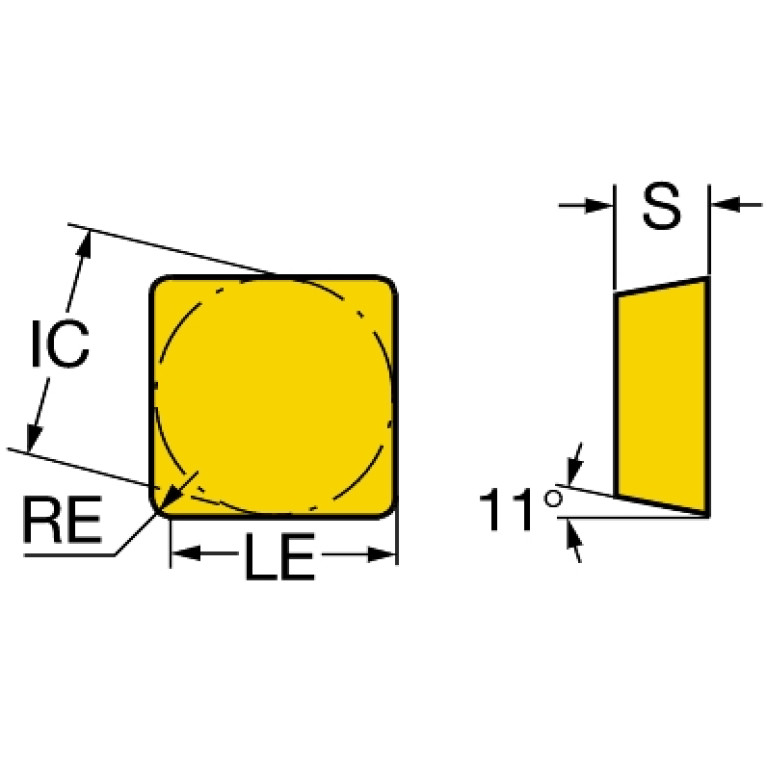

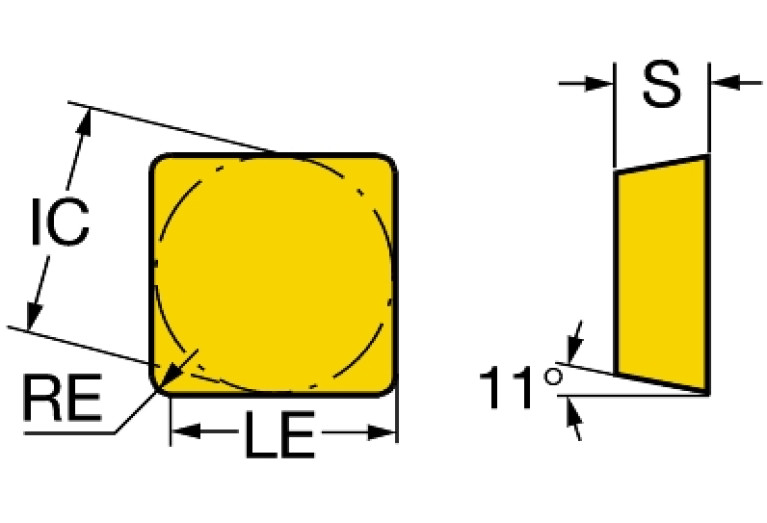

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PGN

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SP1904081N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SP1904081NA$$08

L (Cutting edge length)

19.05 mm

LE (Cutting edge effective length)

18.25 mm

LOC-03 ISO

ISO$SP1904081NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1904081N

Materials

P,M,K,N,S

MIID (Master insert identification)

SPGN190408 H13A

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

SPGN190408

STDDESAnsi (Standard designation ANSI)

SPGN632

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.024 kg
