Главная Инструменты 201-02 - Square insert SPGN 12 03 04 H1P

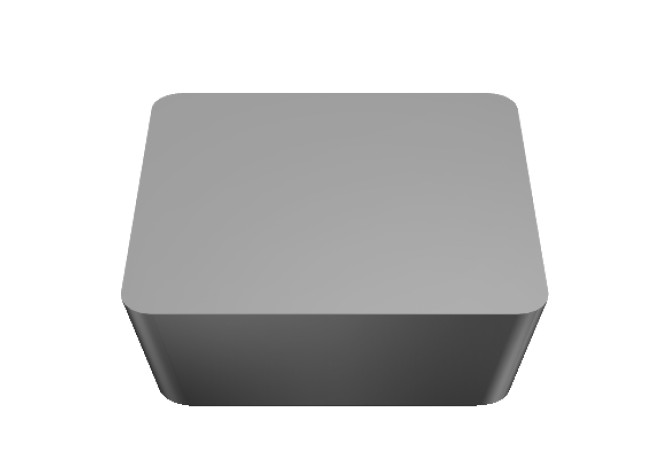

SPGN 12 03 04 H1P

Артикул: 5750987

В наличии

0 ₽

В корзину

Описание

Характеристики

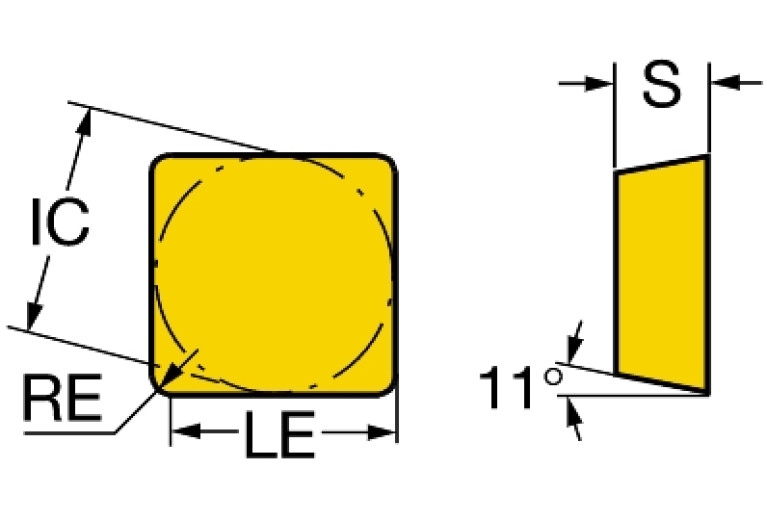

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PGN

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SP1203041N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

H1P

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SP1203041NA$$04

L (Cutting edge length)

12.7 mm

LE (Cutting edge effective length)

12.3 mm

LOC-03 ISO

ISO$SP1203041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203041N

MIID (Master insert identification)

SPGN120304 H1P

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

SPGN120304

STDDESAnsi (Standard designation ANSI)

SPGN421

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.006 kg
