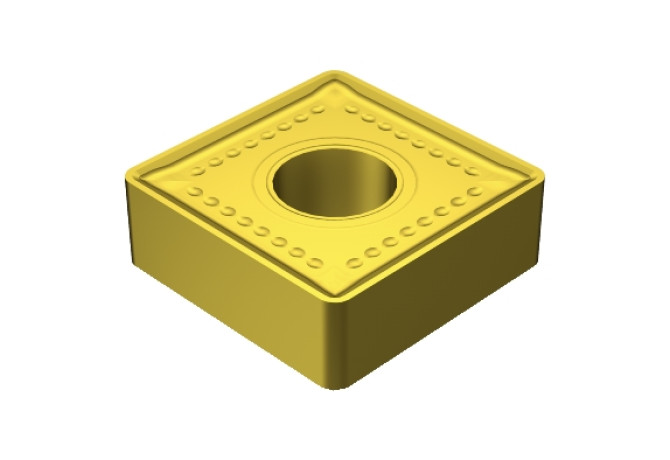

Главная Инструменты 201-02 - Square insert SNMM 25 07 32-MR 2035

SNMM 25 07 32-MR 2035

Артикул: 5750916

В наличии

0 ₽

В корзину

Описание

Характеристики

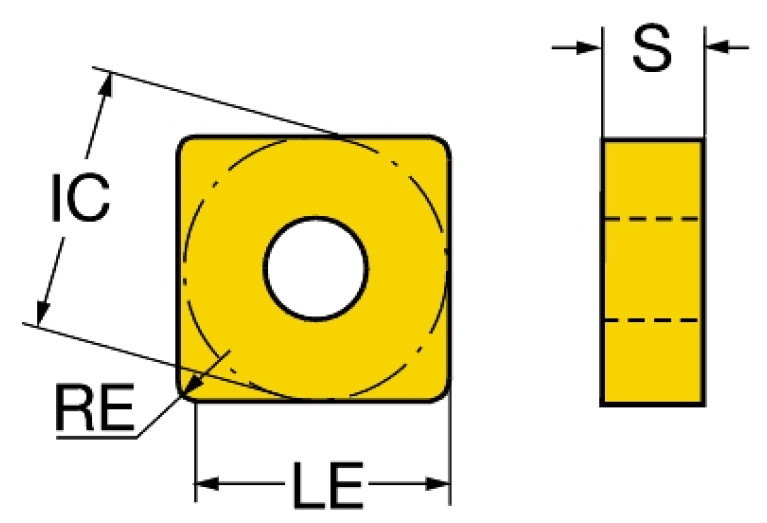

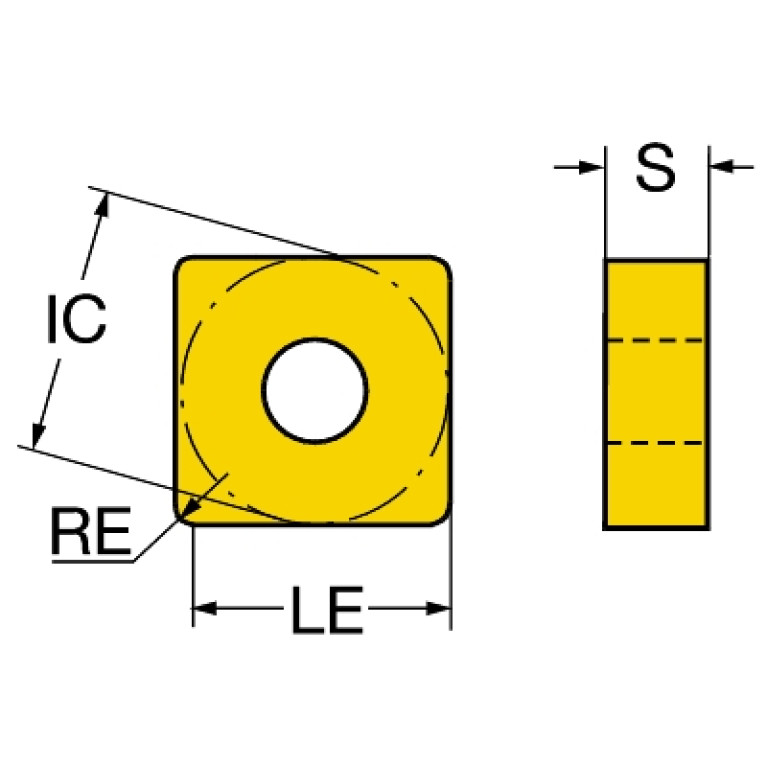

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

9.119 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SN2507322N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

2035

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

25.4 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SN2507322NB$$32

L (Cutting edge length)

25.4 mm

LE (Cutting edge effective length)

22.2 mm

LOC-03 ISO

ISO$SN2507322NB$$32

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507322N

Materials

MIID (Master insert identification)

SNMM250732 2035

NOI (Insert index count)

RE (Corner radius)

3.175 mm

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

SNMM250732

STDDESAnsi (Standard designation ANSI)

SNMM858

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.066 kg
