Главная Инструменты 201-02 - Square insert SNMG 25 07 16-PR 4335

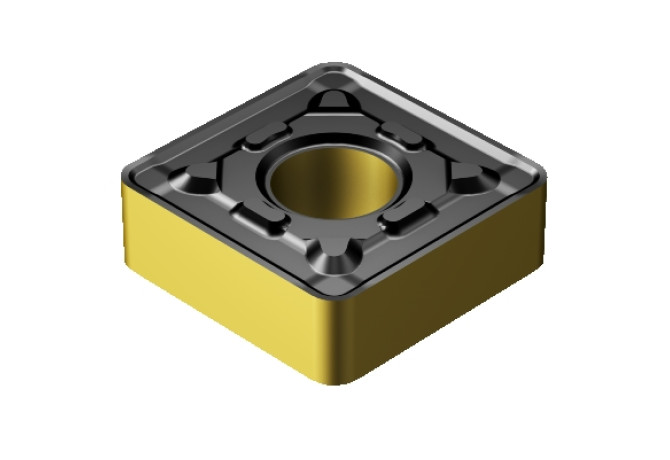

SNMG 25 07 16-PR 4335

Артикул: 7081114

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

9.119 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SN2507162N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4335

GRDPRIO (Standard designation of the grade main application)

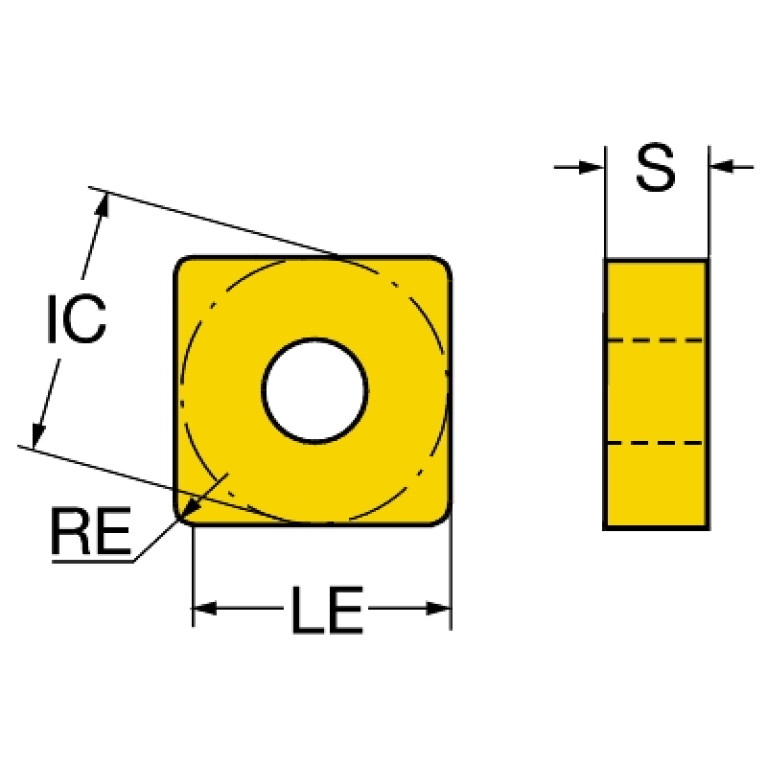

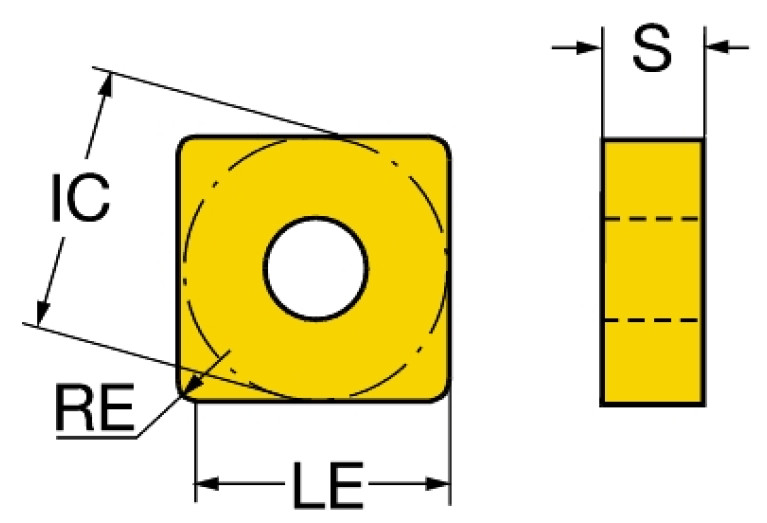

IC (Inscribed circle diameter)

25.4 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SN2507162NB$$16

L (Cutting edge length)

25.4 mm

LE (Cutting edge effective length)

23.8 mm

LOC-03 ISO

ISO$SN2507162NB$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507162N

Materials

MIID (Master insert identification)

SNMG250716 4335

NOI (Insert index count)

RE (Corner radius)

1.588 mm

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

SNMG250716

STDDESAnsi (Standard designation ANSI)

SNMG854

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.06 kg
