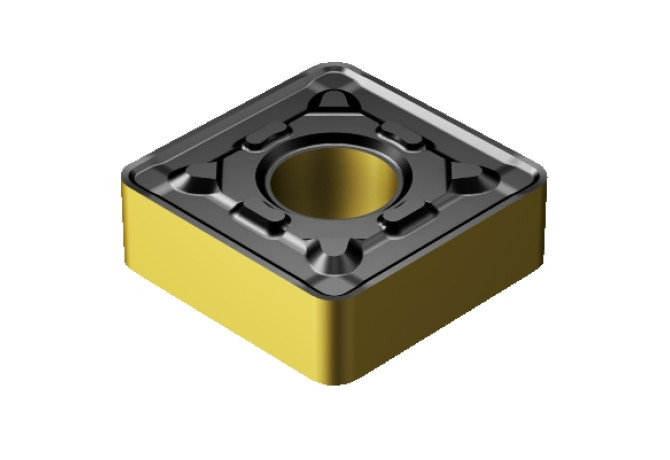

SNMG 19 06 24-PR 4205
SNMG 19 06 24-PR 4205
Артикул:
5750720
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
PR
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TICN+AL2O3+TIN
D1 (Fixing hole diameter)
7.925 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SN1906242N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
4205
GRDPRIO (Standard designation of the grade main application)
HC

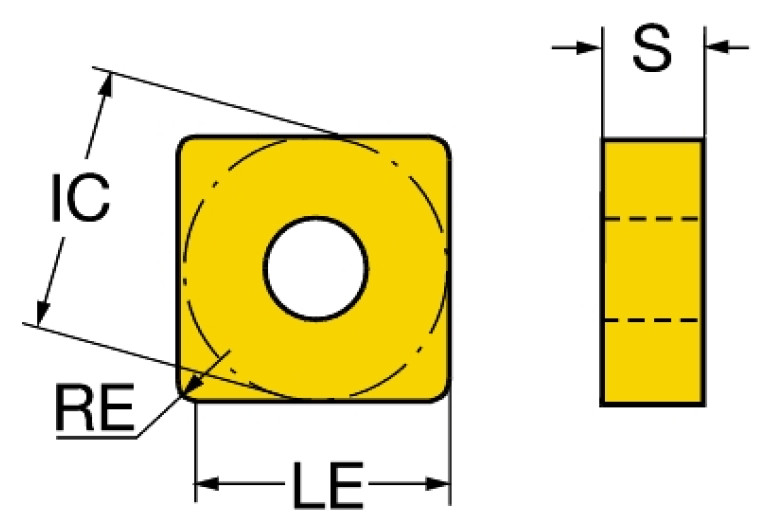

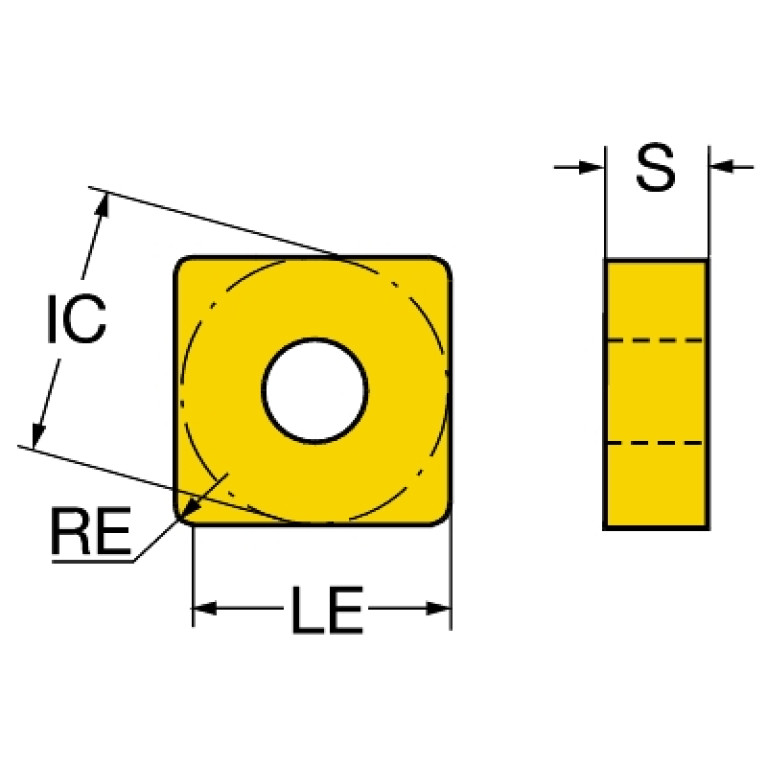

IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SN1906242NB$$24
L (Cutting edge length)
19.05 mm
LE (Cutting edge effective length)
16.65 mm
LOC-03 ISO
ISO$SN1906242NB$$24
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1906242N
Materials
P
MIID (Master insert identification)
SNMG190624 4205
NOI (Insert index count)
4
RE (Corner radius)
2.381 mm
S (Insert thickness)
6.35 mm
S1 (Insert thickness total)
6.35 mm
STDDES (Standard designation)
SNMG190624
STDDESAnsi (Standard designation ANSI)
SNMG646
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.026 kg
