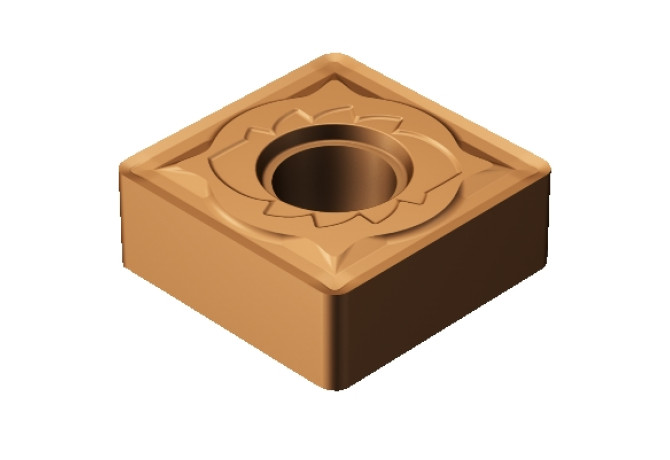

SNMG 19 06 12-SMR 1115
SNMG 19 06 12-SMR 1115
Артикул:
6066636
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
SMR
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN+TiAlN
D1 (Fixing hole diameter)
7.925 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SN1906122N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
1115
GRDPRIO (Standard designation of the grade main application)
HC

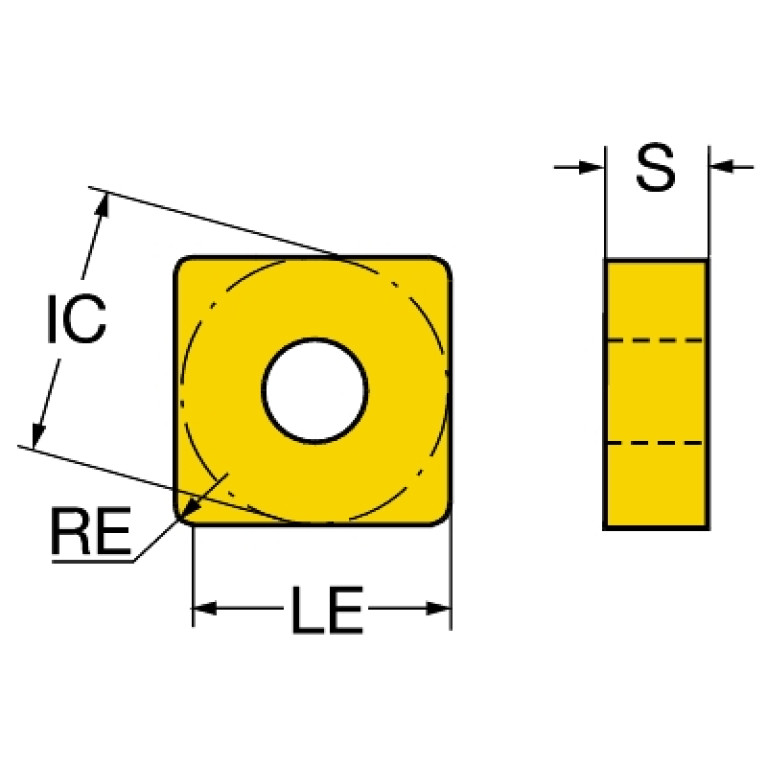

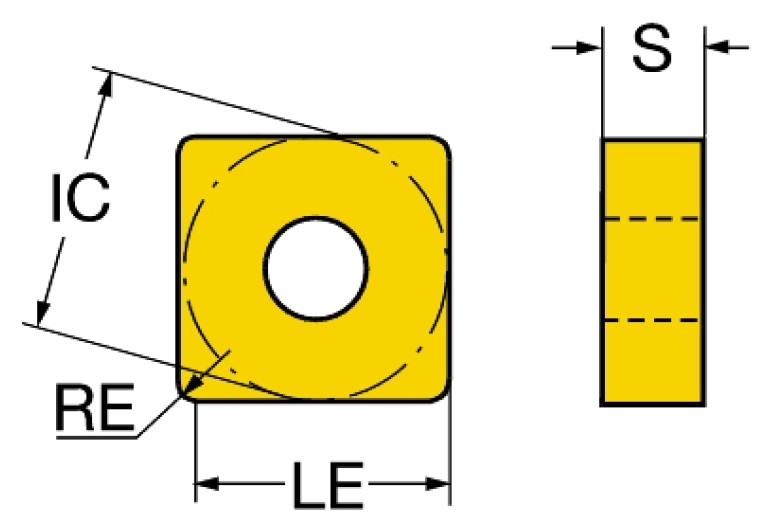

IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SN1906122NB$$12
L (Cutting edge length)
19.05 mm
LE (Cutting edge effective length)
17.85 mm
LOC-03 ISO
ISO$SN1906122NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1906122N
Materials
M,S
MIID (Master insert identification)
SNMG190612 1115
NOI (Insert index count)
8
RE (Corner radius)
1.191 mm
S (Insert thickness)
6.35 mm
S1 (Insert thickness total)
6.35 mm
STDDES (Standard designation)
SNMG190612
STDDESAnsi (Standard designation ANSI)
SNMG643
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.03 kg
