Главная Инструменты 201-02 - Square insert SNMG 15 06 16-MR 4335

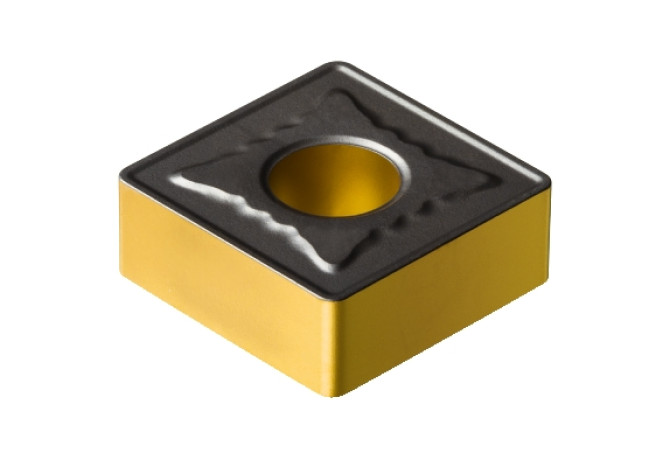

SNMG 15 06 16-MR 4335

Артикул: 7080809

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

6.35 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SN1506162N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4335

GRDPRIO (Standard designation of the grade main application)

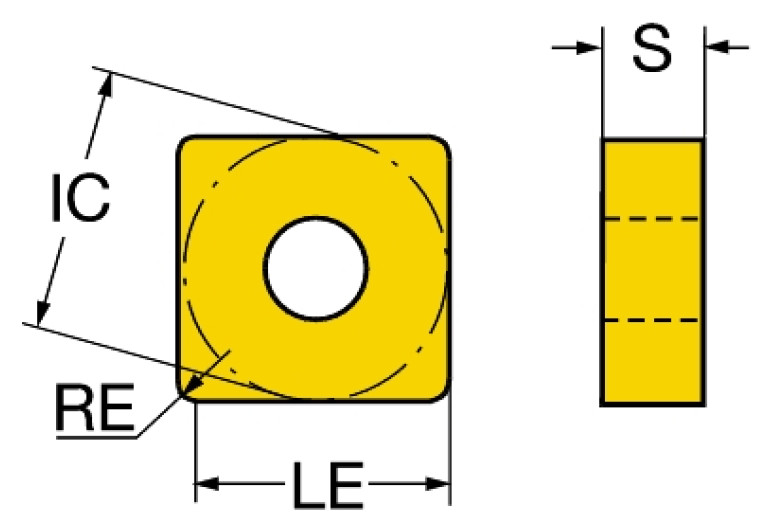

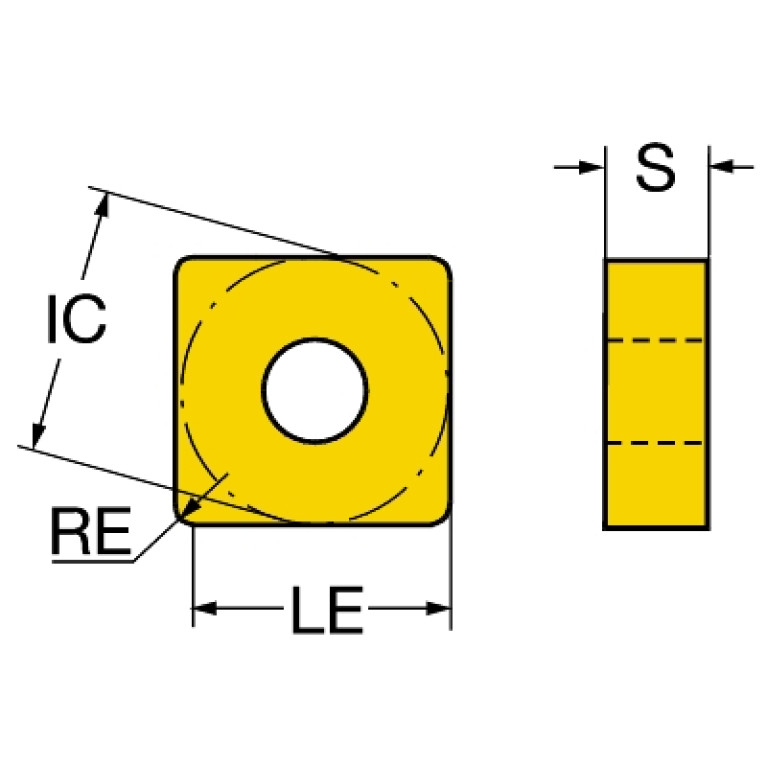

IC (Inscribed circle diameter)

15.875 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SN1506162NB$$16

L (Cutting edge length)

15.875 mm

LE (Cutting edge effective length)

14.275 mm

LOC-03 ISO

ISO$SN1506162NB$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506162N

Materials

MIID (Master insert identification)

SNMG150616 4335

NOI (Insert index count)

RE (Corner radius)

1.588 mm

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

SNMG150616

STDDESAnsi (Standard designation ANSI)

SNMG544

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.018 kg
