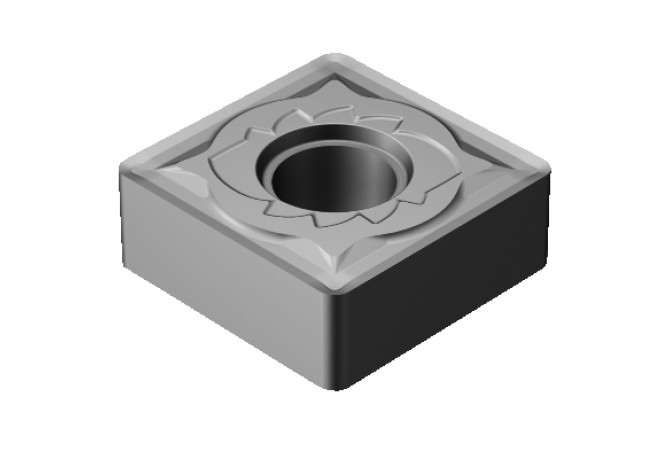

SNMG 12 04 12-SMR 1210
SNMG 12 04 12-SMR 1210
Артикул:
8432277
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
SMR
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
AlTiCrN
D1 (Fixing hole diameter)
5.156 mm
Delivery state
LH - Stocked
Delivery state valid from
6/1/2024
DIN
SN1204122N
EPSR (Insert included angle)
90 Degree
GRDMFG (Grade manufacturers designation)
1210
GRDPRIO (Standard designation of the grade main application)
HC

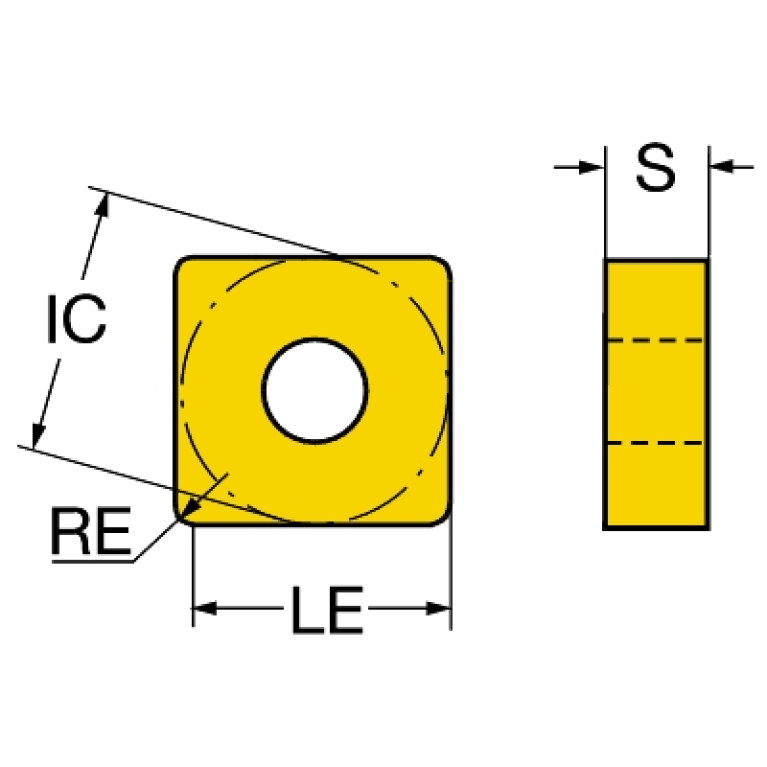

IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$SN1204122NB$$12
L (Cutting edge length)
12.7 mm
LE (Cutting edge effective length)
8.5 mm
LOC-03 ISO
ISO$SN1204122NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1204122N
Materials
M,S
MIID (Master insert identification)
SNMG120412 1210
NOI (Insert index count)
8
RE (Corner radius)
1.191 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
SNMG120412
STDDESAnsi (Standard designation ANSI)
SNMG433
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.009 kg
