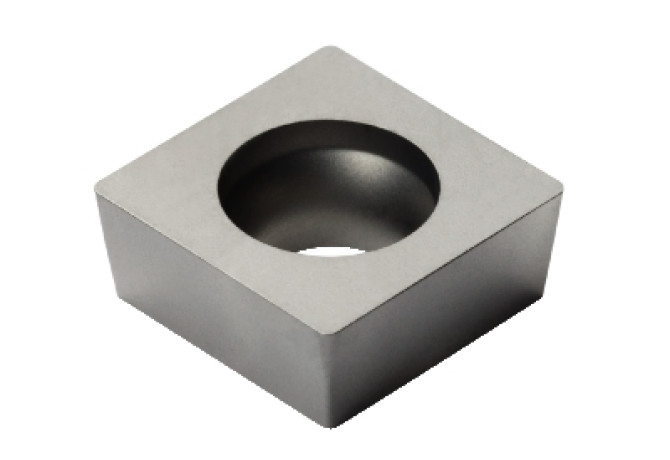

Главная Инструменты 201-02 - Square insert SCMW 12 04 08 5015

SCMW 12 04 08 5015

Артикул: 5749186

В наличии

0 ₽

В корзину

Описание

Характеристики

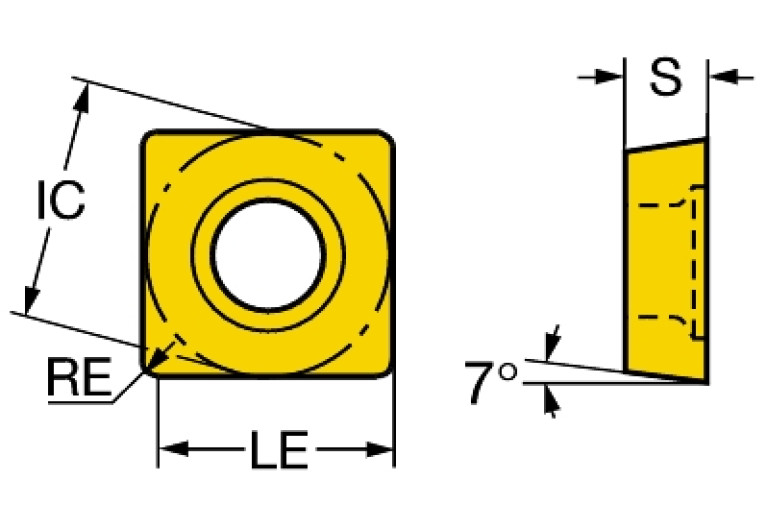

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CMW

CECC (Cutting edge condition code)

E - Rounded

D1 (Fixing hole diameter)

5.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SC1204083N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

5015

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SC1204083NB$$08

L (Cutting edge length)

12.7 mm

LE (Cutting edge effective length)

11.9 mm

LOC-03 ISO

ISO$SC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Materials

MIID (Master insert identification)

SCMW120408 5015

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

SCMW120408

STDDESAnsi (Standard designation ANSI)

SCMW432

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
