Главная Инструменты 201-02 - Square insert SCMT 09 T3 04-PMC 4425

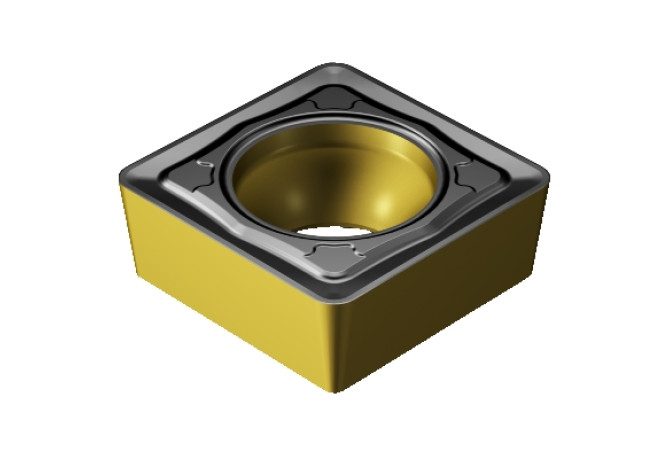

SCMT 09 T3 04-PMC 4425

Артикул: 8019375

В наличии

0 ₽

В корзину

Описание

Характеристики

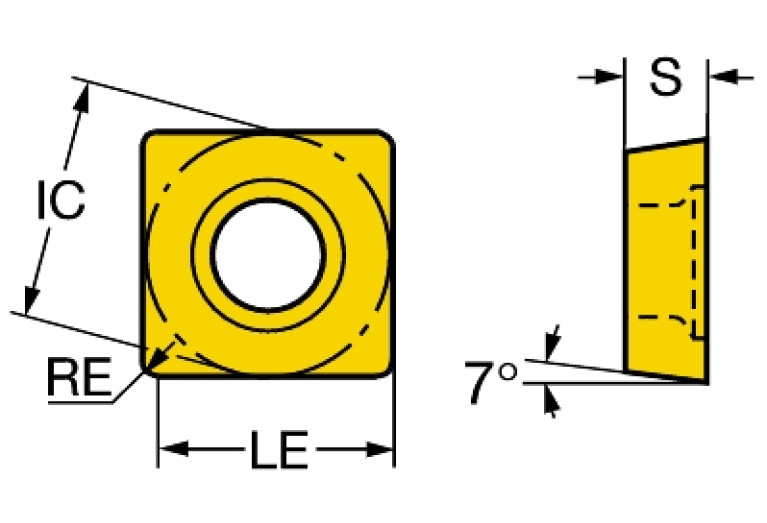

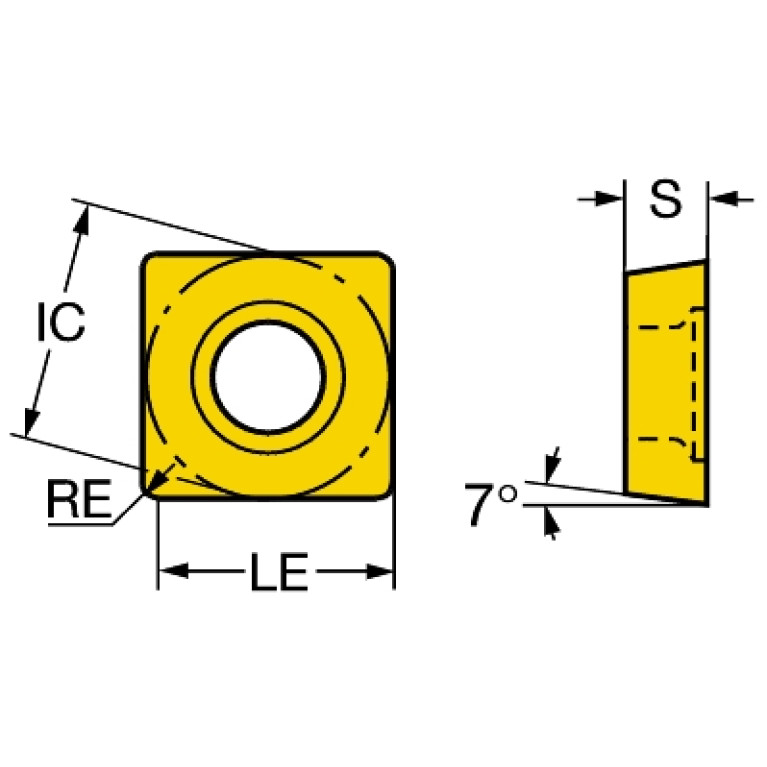

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

PMC

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SC09T3043N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SC09T3043NB$$04

L (Cutting edge length)

9.525 mm

LE (Cutting edge effective length)

9.125 mm

LOC-03 ISO

ISO$SC09T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3043N

Materials

P,K

MIID (Master insert identification)

SCMT09T304 4425

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

STDDES (Standard designation)

SCMT09T304

STDDESAnsi (Standard designation ANSI)

SCMT32.51

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.003 kg
