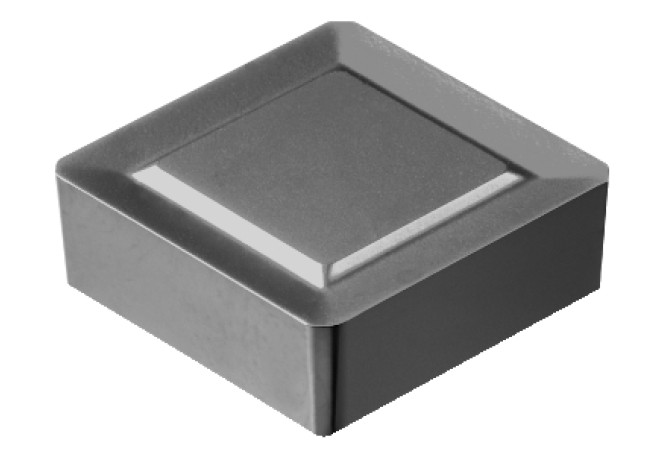

Главная Инструменты 201-02 - Square insert SBEX 12 04 ZZ-11 HM

SBEX 12 04 ZZ-11 HM

Артикул: 5748822

В наличии

0 ₽

В корзину

Описание

Характеристики

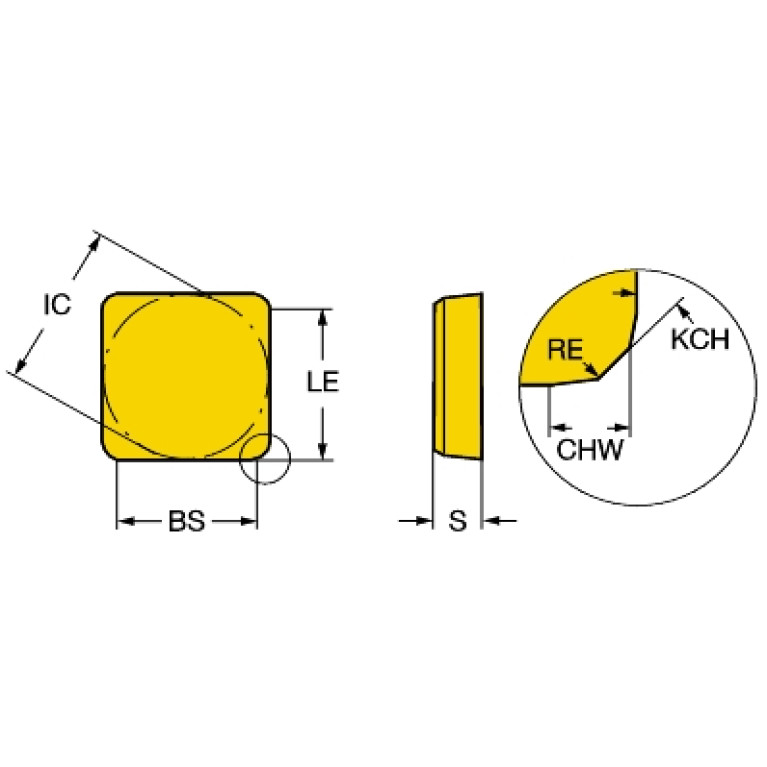

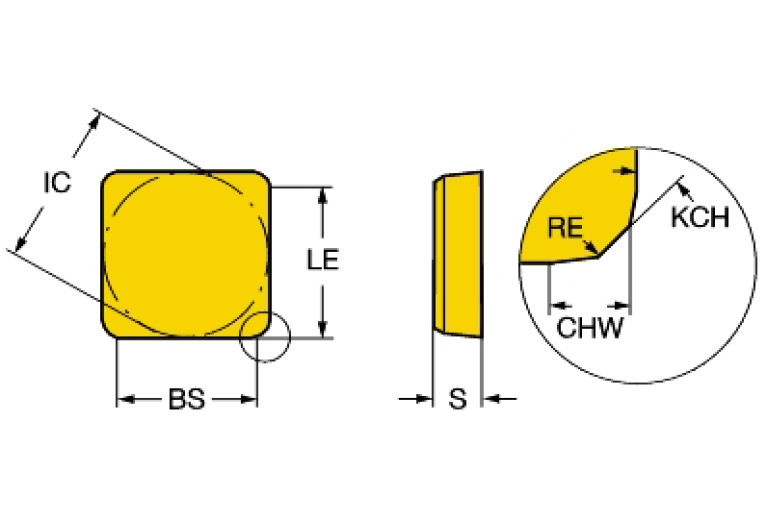

AN (Clearance angle major)

5 Degree

BS (Wiper edge length)

0.7 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

CHW (Corner chamfer width)

0.56 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SB1204ZZ1N

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

8 Degree

GRDMFG (Grade manufacturers designation)

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SB1204$$1NAZZ$$

KCH (Corner chamfer angle)

45 Degree

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

12.7 mm

LE (Cutting edge effective length)

8 mm

LOC-03 ISO

ISO$SB1204$$1NAZZ$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SB1204ZZ1N

Materials

NOI (Insert index count)

RE (Corner radius)

0.5 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
