Главная Инструменты 201-02 - Square insert SBAN 12 03 ZZ H13A

SBAN 12 03 ZZ H13A

Артикул: 5749372

В наличии

0 ₽

В корзину

Описание

Характеристики

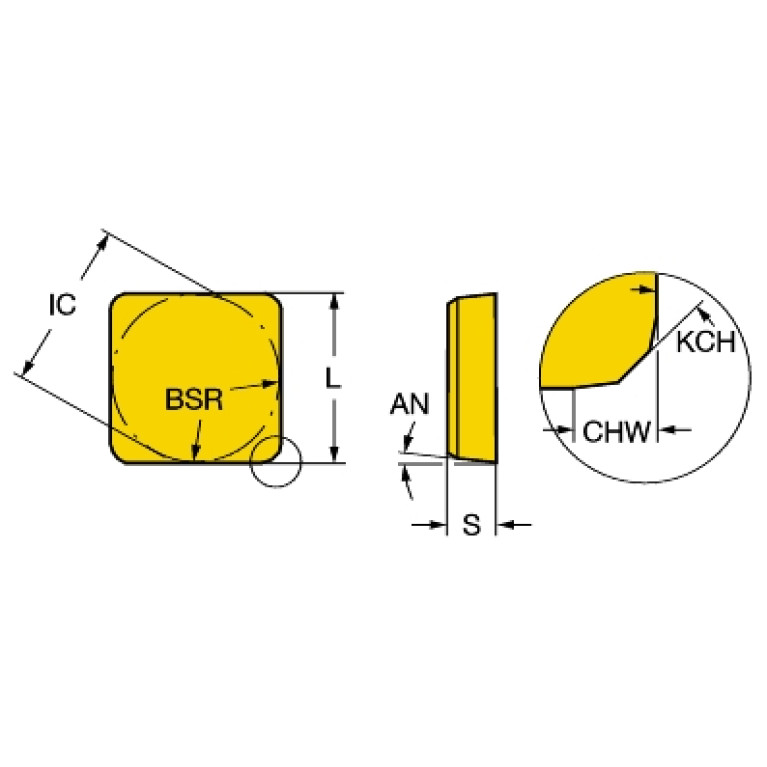

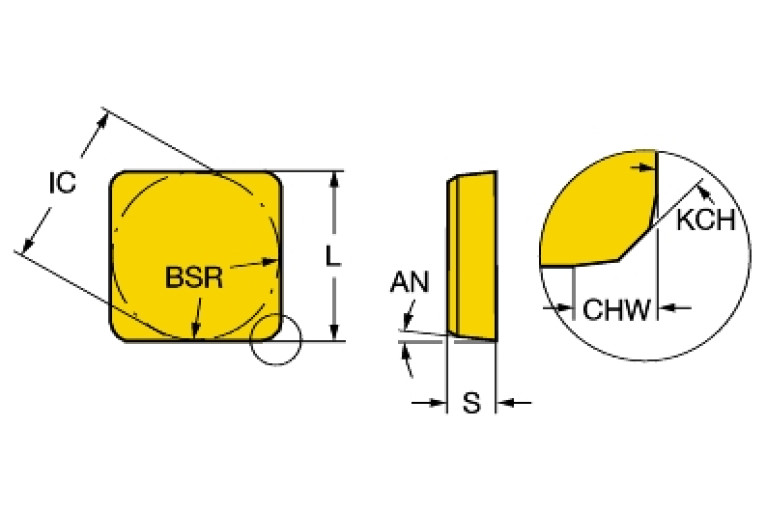

AN (Clearance angle major)

5 Degree

BS (Wiper edge length)

10.3 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

E - Rounded

CHW (Corner chamfer width)

1.2 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SB1203ZZ1N

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SB1203$$1NAZZ$$

KCH (Corner chamfer angle)

45 Degree

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

12.7 mm

LE (Cutting edge effective length)

11.5 mm

LOC-03 ISO

ISO$SB1203$$1NAZZ$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SB1203ZZ1N

Materials

K,N,S

NOI (Insert index count)

RE (Corner radius)

0.5 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.007 kg
