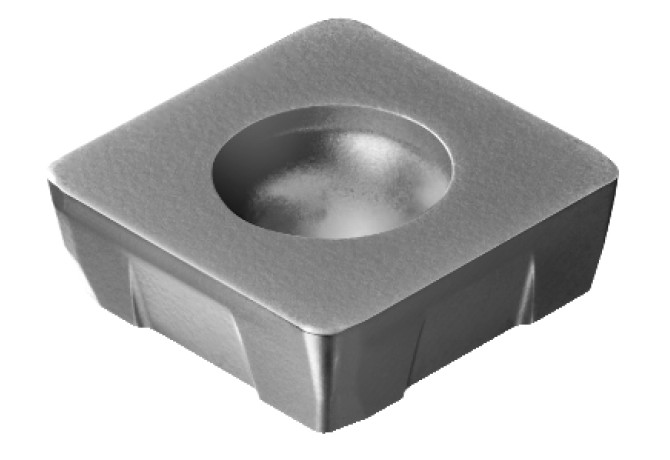

Главная Инструменты 201-02 - Square insert R210-09 04 12M-PM 1130

R210-09 04 12M-PM 1130

Артикул: 7100934

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

BS (Wiper edge length)

0.77 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD AlTiCrN

D1 (Fixing hole diameter)

4.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-MA09X400

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

1130

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.4 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MA09X4$$3RB$$$$

KRINS (Cutting edge angle major)

10 Degree

L (Cutting edge length)

9.4 mm

LE (Cutting edge effective length)

6.2 mm

LOC-03 ISO

SV$$MA09X4$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MA09X400

Materials

P,M,N,S,H

NOI (Insert index count)

RE (Corner radius)

1 mm

S (Insert thickness)

4 mm

S1 (Insert thickness total)

4 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.003 kg
