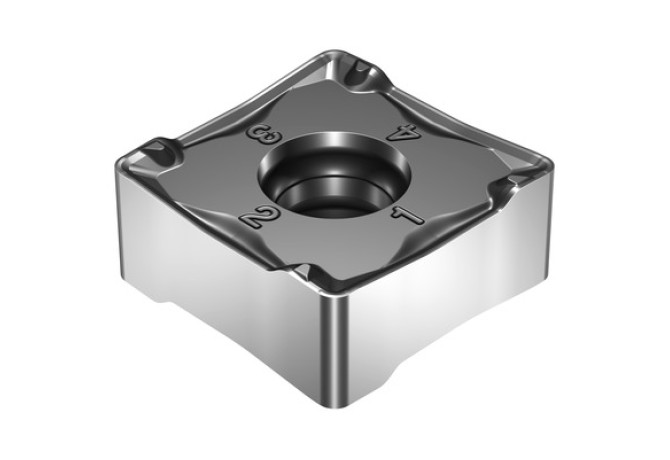

Главная Инструменты 201-02 - Square insert MF80-130508M-M50 1130

MF80-130508M-M50 1130

Артикул: 8172034

В наличии

0 ₽

В корзину

Описание

Характеристики

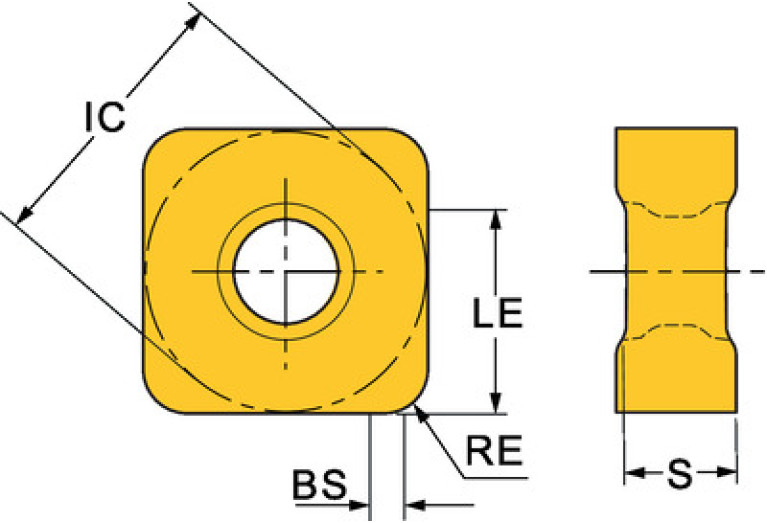

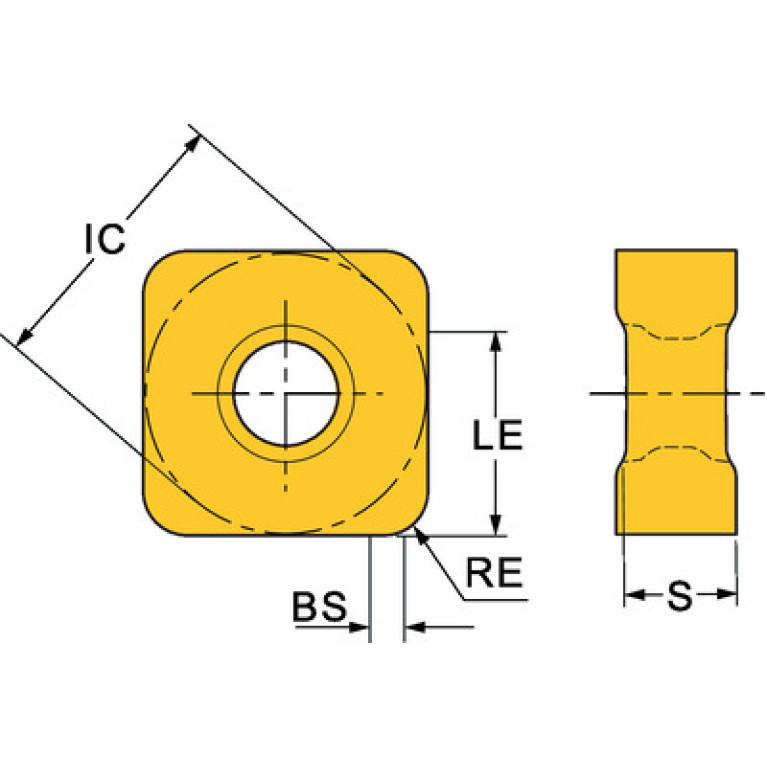

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

1.6 mm

CBMD (Chip breaker manufacturers designation)

M50

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD AlTiCrN

D1 (Fixing hole diameter)

4.8 mm

Delivery state valid from

12/1/2023

DIN

SV-NY130500

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

1130

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

13 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NY1305$$3RB$$$$

KRINS (Cutting edge angle major)

89.5 Degree

L (Cutting edge length)

13 mm

LE (Cutting edge effective length)

9 mm

LOC-03 ISO

SV$$NY1305$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NY130500

Materials

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

5 mm

S1 (Insert thickness total)

5 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
