L290.90-12T308PPM-WL235

Артикул: 5735362

В наличии

0 ₽

В корзину

Описание

Характеристики

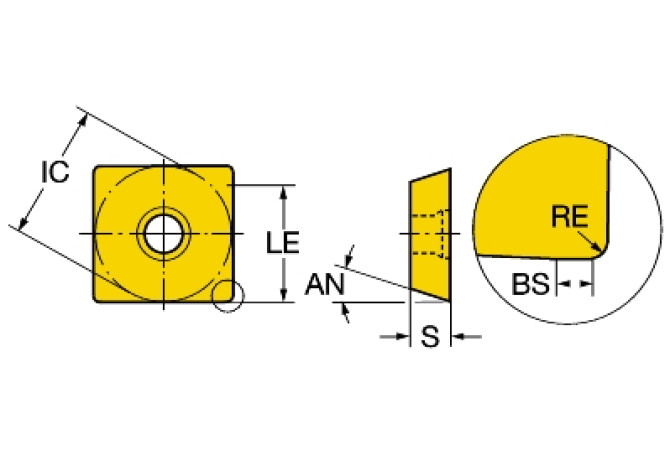

AN (Clearance angle major)

18 Degree

BS (Wiper edge length)

1.5 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

D1 (Fixing hole diameter)

4.1 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-MC12T300

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

13.29 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MC12T3$$3LB$$$$

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

13.29 mm

LE (Cutting edge effective length)

10.7 mm

LOC-03 ISO

SV$$MC12T3$$3LB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MC12T300

Materials

P,M

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.007 kg
