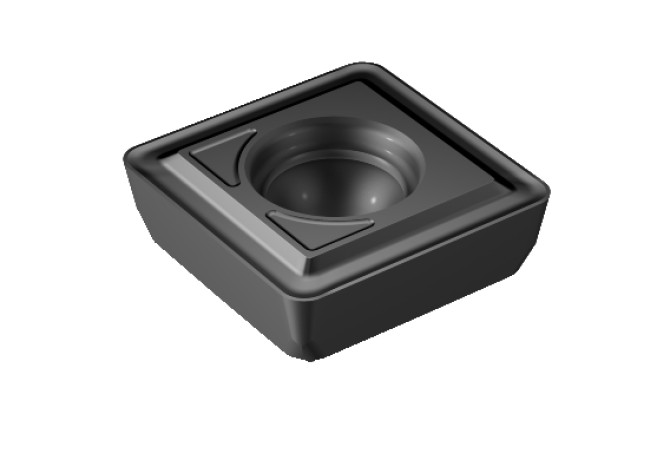

880-03 03 W05H-P-GM 4344
880-03 03 W05H-P-GM 4344
Артикул:
6770730
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
11 Degree
BN (Face land width)
0.06 mm
BS (Wiper edge length)
0.3 mm
CBMD (Chip breaker manufacturers designation)
GM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
2.5 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-DE0303P0
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
15 Degree
GB (Face land angle)
5 Degree
GRDMFG (Grade manufacturers designation)
4344
GRDPRIO (Standard designation of the grade main application)
HC

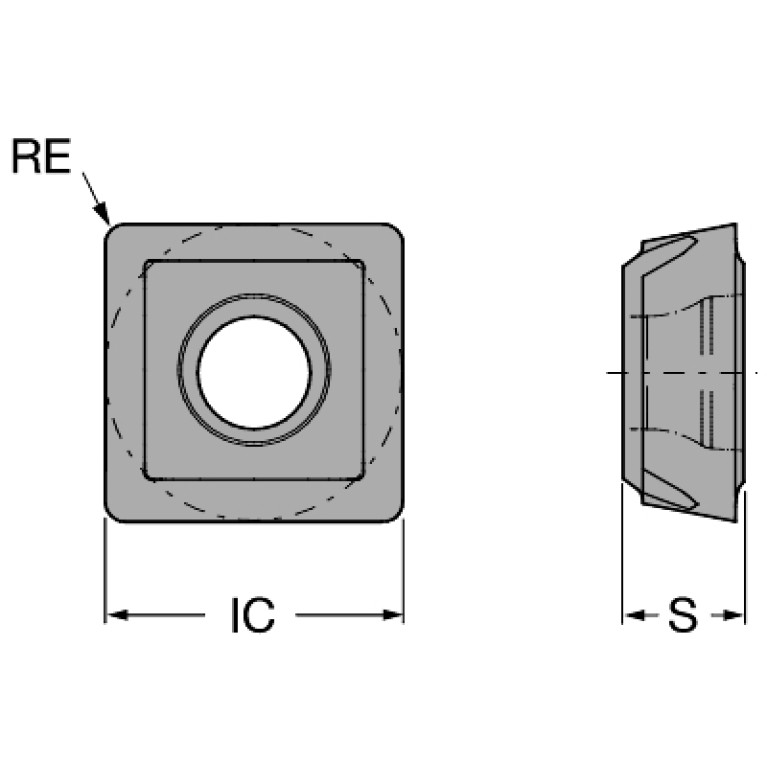

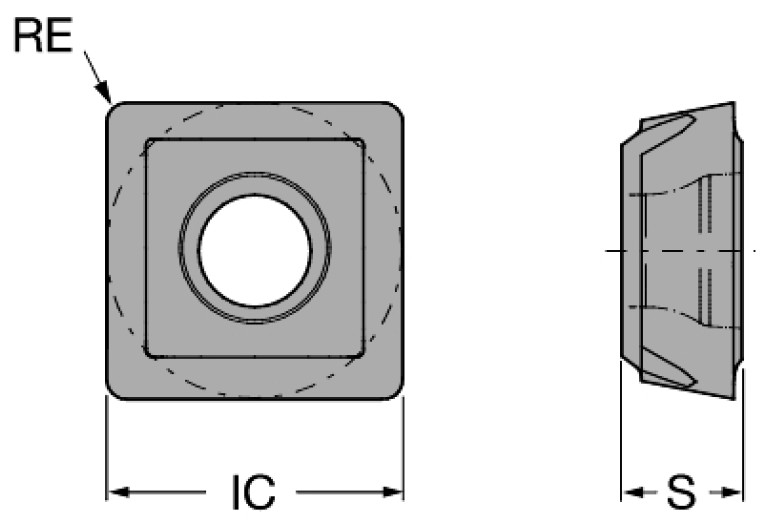

IC (Inscribed circle diameter)
6 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DE0303$$3RBP$$$
L (Cutting edge length)
6 mm
LOC-03 ISO
SV$$DE0303$$3RBP$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DE0303P0
Materials
P,M,K,N,S,H
NOI (Insert index count)
4
RE (Corner radius)
0.5 mm
S (Insert thickness)
2.6 mm
S1 (Insert thickness total)
2.6 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
Working process
No working processes available
WT (Weight of item)
0.001 kg
