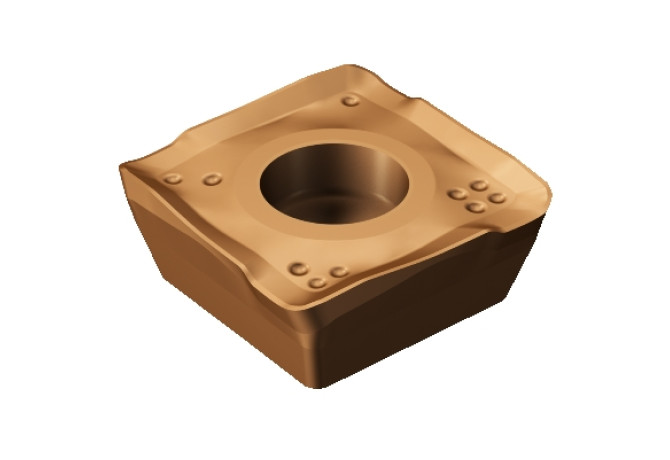

490R-140412M-PM 1020
490R-140412M-PM 1020
Артикул:
5922151
В наличии
0 ₽
Характеристики

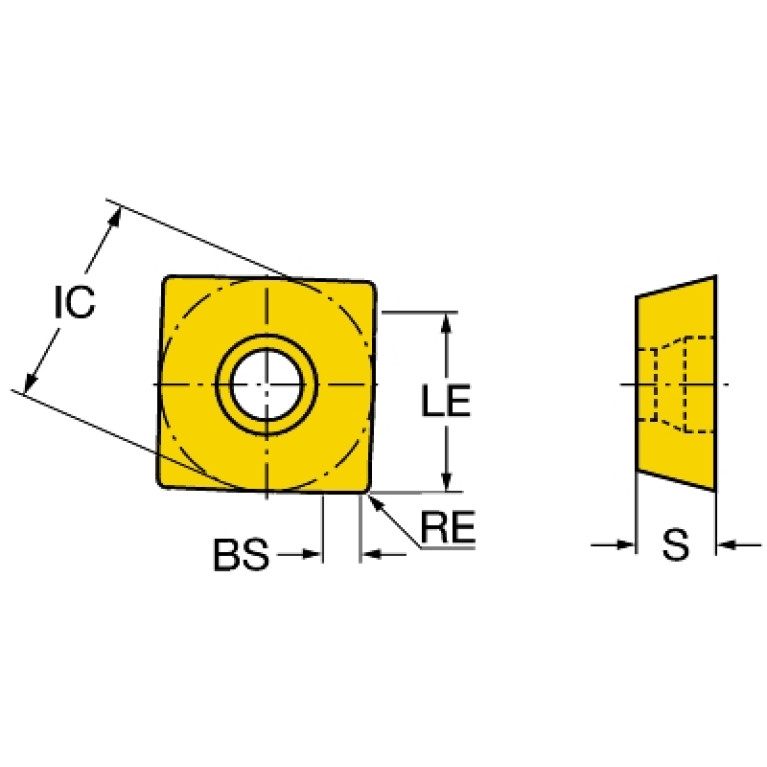

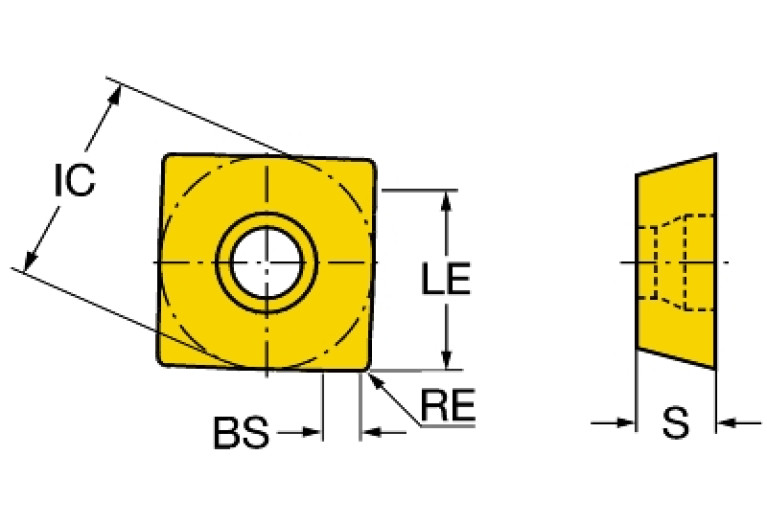

AN (Clearance angle major)
16 Degree
BN (Face land width)
0.16 mm
BS (Wiper edge length)
2 mm
CBMD (Chip breaker manufacturers designation)
PM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
4.1 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-MI140400
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
22 Degree
GB (Face land angle)
1 Degree
GRDMFG (Grade manufacturers designation)
1020
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
13.8 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MI1404$$3RB$$$$
KRINS (Cutting edge angle major)
90 Degree
L (Cutting edge length)
14 mm
LE (Cutting edge effective length)
10.3 mm
LOC-03 ISO
SV$$MI1404$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MI140400
Materials
K
NOI (Insert index count)
4
RE (Corner radius)
1.2 mm
S (Insert thickness)
3.9 mm
S1 (Insert thickness total)
3.9 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.008 kg
