Главная Инструменты 201-02 - Square insert 415N-05 02 06M-M30 1130

415N-05 02 06M-M30 1130

Артикул: 7082568

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

M30

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD AlTiCrN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-NR050200

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

5 Degree

GRDMFG (Grade manufacturers designation)

1130

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

5 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NR0502$$3NB$$$$

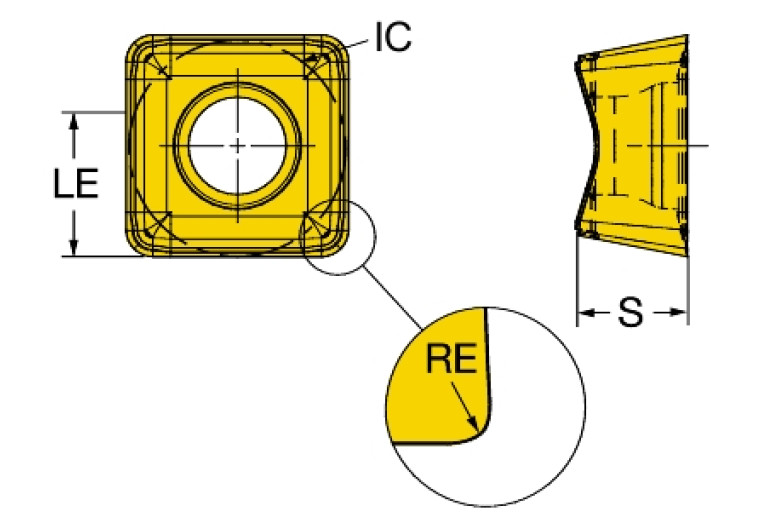

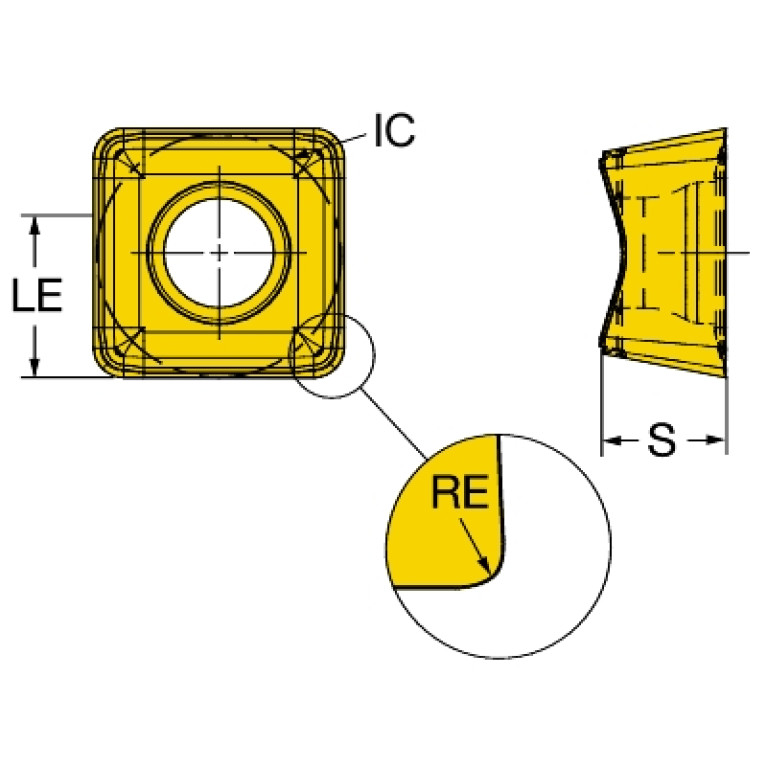

L (Cutting edge length)

5 mm

LE (Cutting edge effective length)

3.8 mm

LOC-03 ISO

SV$$NR0502$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NR050200

Materials

P,M,S,H

NOI (Insert index count)

RE (Corner radius)

0.6 mm

S (Insert thickness)

2.21 mm

S1 (Insert thickness total)

2.21 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
