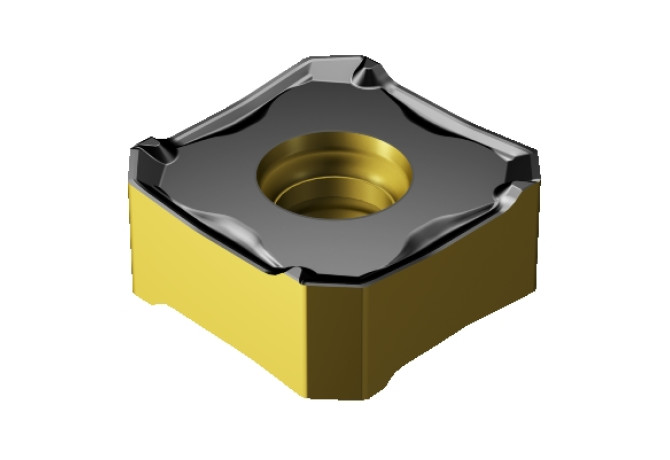

345R-1305M-KH 3220
345R-1305M-KH 3220
Артикул:
5759271
В наличии
0 ₽

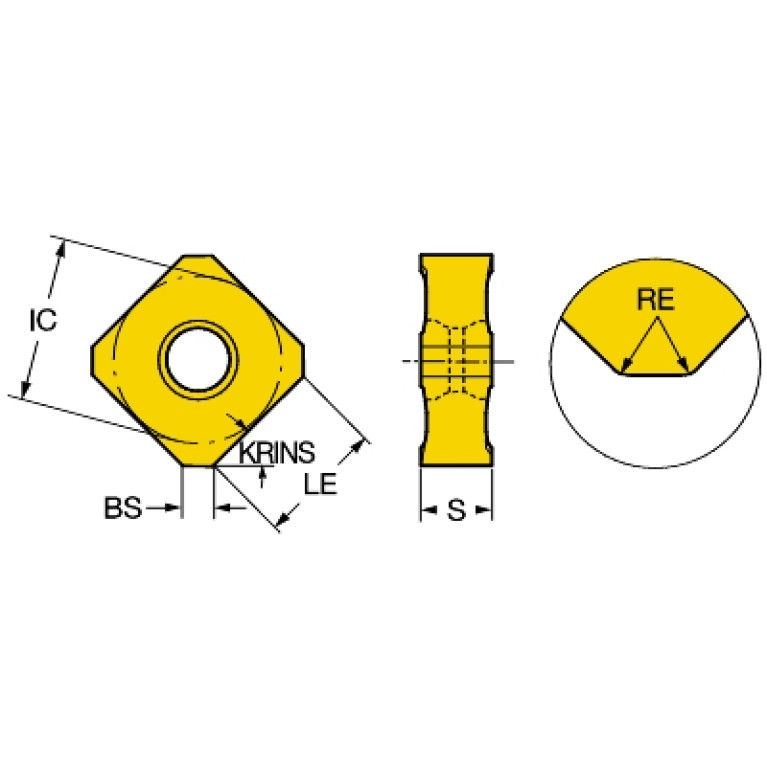

Характеристики
AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
2 mm
CBMD (Chip breaker manufacturers designation)
KH
CECC (Cutting edge condition code)
K - Doublechamfered
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
4.8 mm
Delivery state valid from
12/1/2023
DIN
SV-ME130500
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
24 Degree
GRDMFG (Grade manufacturers designation)
3220
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
13 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$ME1305$$3RB$$$$
KRINS (Cutting edge angle major)
45 Degree
L (Cutting edge length)
13 mm
LE (Cutting edge effective length)
8.8 mm
LOC-03 ISO
SV$$ME1305$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-ME130500
Materials
K
NOI (Insert index count)
8
RE (Corner radius)
0.8 mm
S (Insert thickness)
5.05 mm
S1 (Insert thickness total)
5.05 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.01 kg
