T400-XM150AA-M3 C150
T400-XM150AA-M3 C150
Артикул:
8248332
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01412125
DN (Neck diameter)
3 mm
DRVS (Drive size)
2.794 mm
GRDMFG (Grade manufacturers designation)
C150
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R1410$$$$
LDRED (Neck length)
21 mm
LOC-03 ISO
ZYL21R1410$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0141
LOC-03 (DCONMS Diameter)
3.581 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01412125
LS (Shank length)
19.763 mm
Materials
P,N
NOF (Flute count)
4

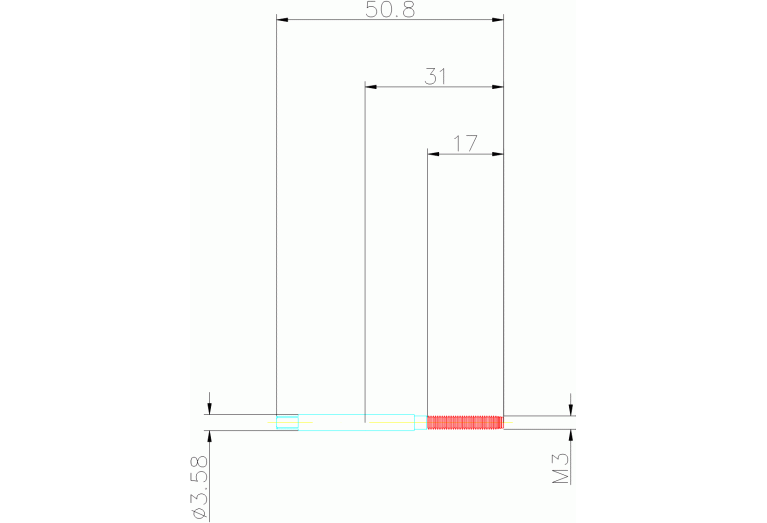

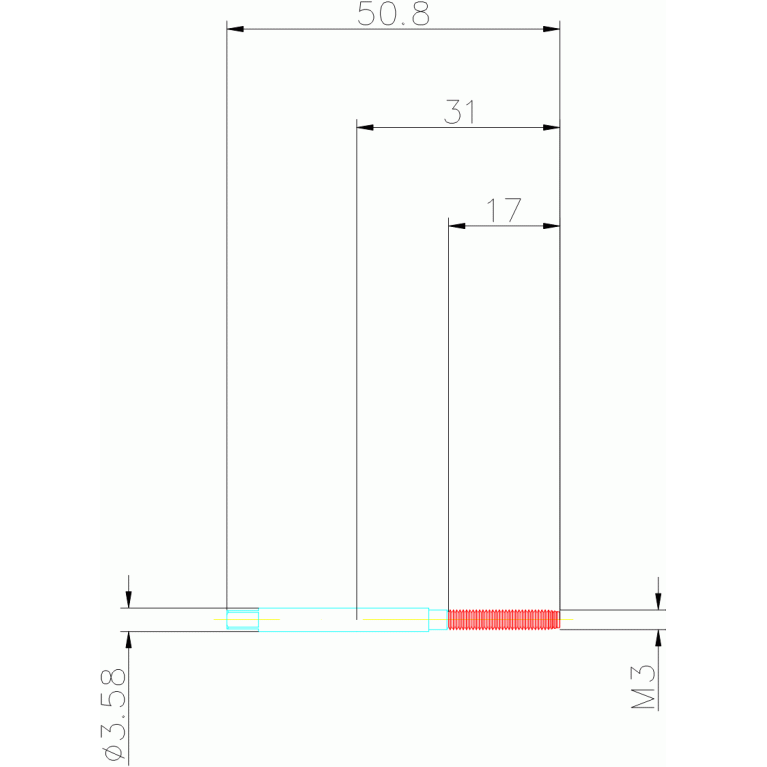

OAL (Overall length)
50.8 mm
PLCD (Gate diameter)
2.8 mm
TCL (Tap chamfer length)
1.744 mm
TCTR (Thread tolerance class)
6HX
TD (Thread diameter)
3 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
16 mm
THOD (Thread designation)
M3x0.5-6HX
TP (Thread pitch)
0.5 mm
Working process
GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole
WT (Weight of item)
0.006 kg
