Главная Инструменты 301-04 - Thread forming tap with reinforced shank T400-XM150AA-M10 C150

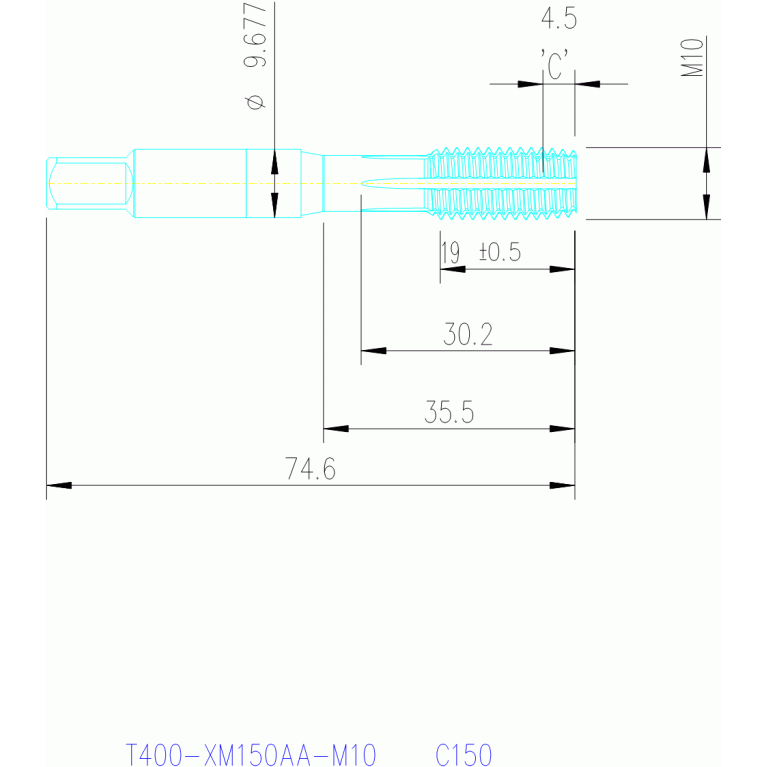

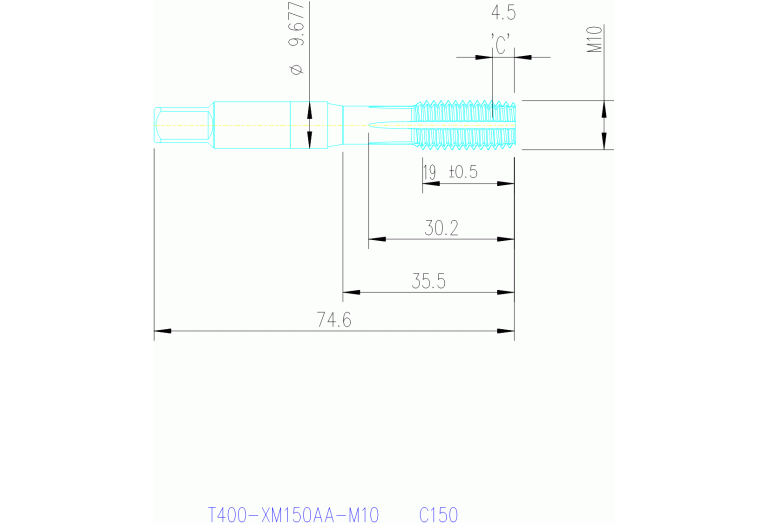

T400-XM150AA-M10 C150

Артикул: 8248328

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL03812125

DN (Neck diameter)

7.3 mm

DRVS (Drive size)

7.264 mm

GRDMFG (Grade manufacturers designation)

C150

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R3810$$$$

LDRED (Neck length)

35.5 mm

LOC-03 ISO

ZYL21R3810$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0381

LOC-03 (DCONMS Diameter)

9.677 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03812125

LS (Shank length)

28.113 mm

Materials

P,N

NOF (Flute count)

OAL (Overall length)

74.6 mm

PLCD (Gate diameter)

9.3 mm

TCL (Tap chamfer length)

5.232 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

10 mm

THFT (Thread form type)

THL (Thread cutting part length)

19 mm

THOD (Thread designation)

M10x1.5-6HX

TP (Thread pitch)

1.5 mm

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.041 kg
