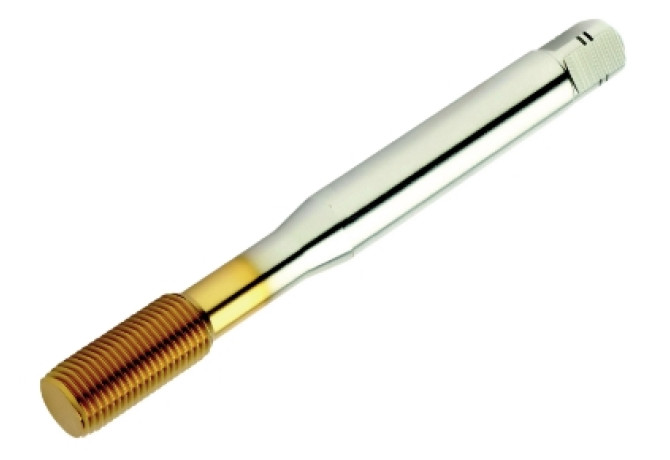

Главная Инструменты 301-04 - Thread forming tap with reinforced shank T400-XM100DP-M4 B125

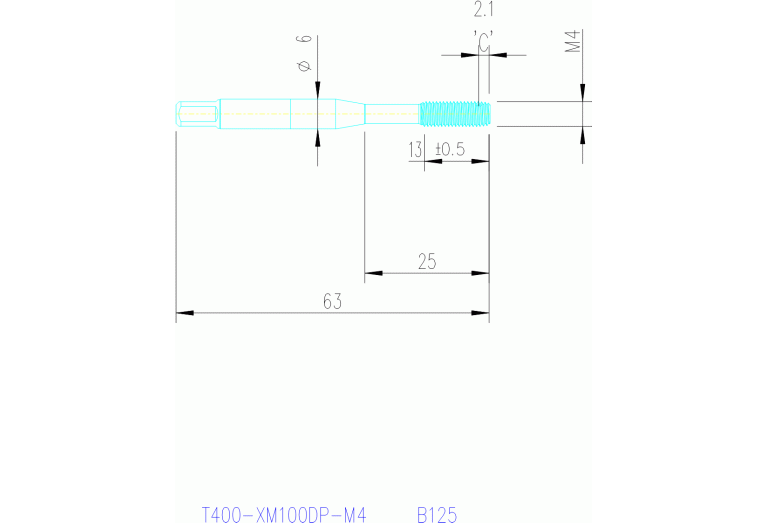

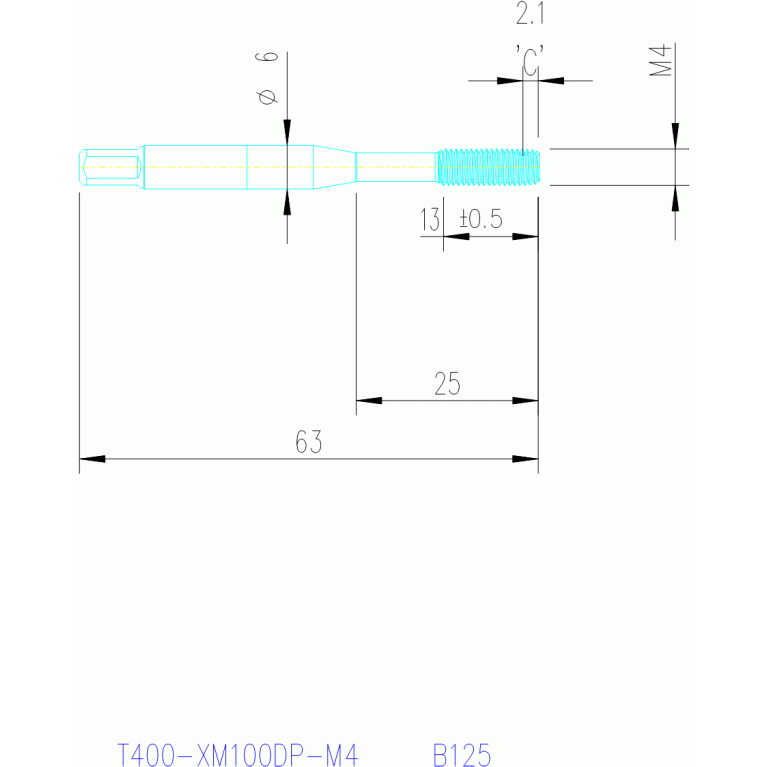

T400-XM100DP-M4 B125

Артикул: 8248343

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00602105

DN (Neck diameter)

3.8 mm

DRVS (Drive size)

4.9 mm

GRDMFG (Grade manufacturers designation)

B125

GRDPRIO (Standard designation of the grade main application)

HSS-E

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F6000$$$$

LDRED (Neck length)

25 mm

LOC-03 ISO

ZYL21F6000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0060

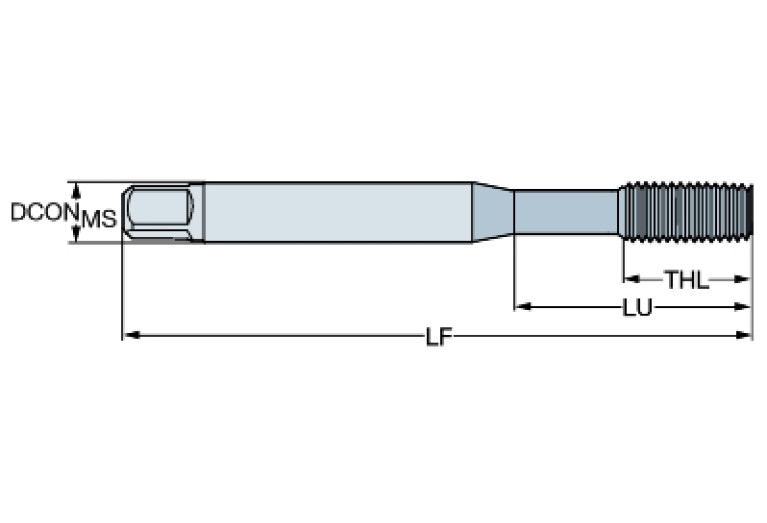

LOC-03 (DCONMS Diameter)

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

LS (Shank length)

23 mm

Materials

P,M,N,S

NOF (Flute count)

OAL (Overall length)

70 mm

PLCD (Gate diameter)

4.6 mm

TCL (Tap chamfer length)

2.441 mm

TCTR (Thread tolerance class)

6HMOD

TD (Thread diameter)

4.909 mm

THFT (Thread form type)

EGM

THL (Thread cutting part length)

13 mm

THOD (Thread designation)

EGM4.909x0.7-6HMOD

TP (Thread pitch)

0.7 mm

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.013 kg
