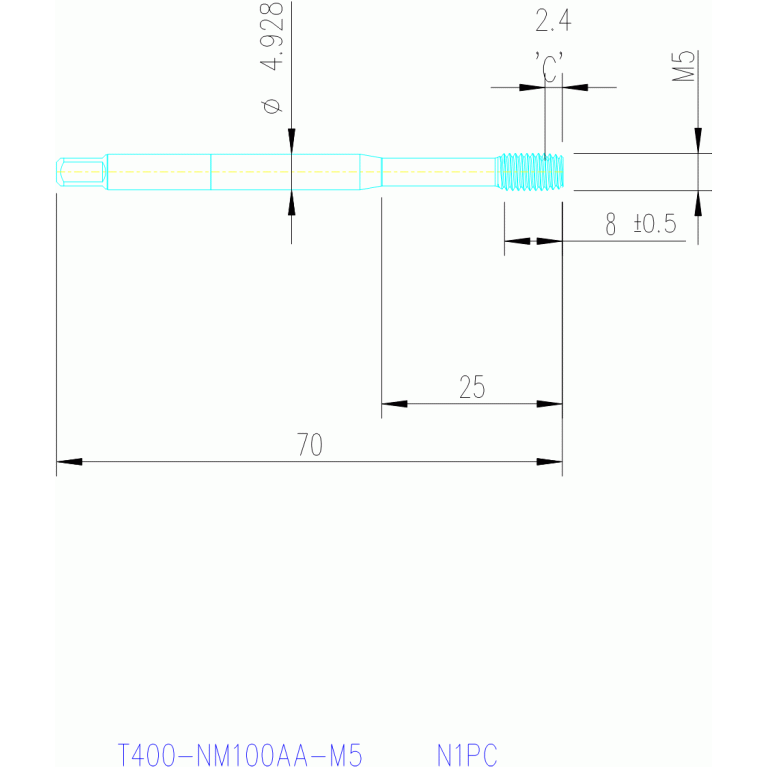

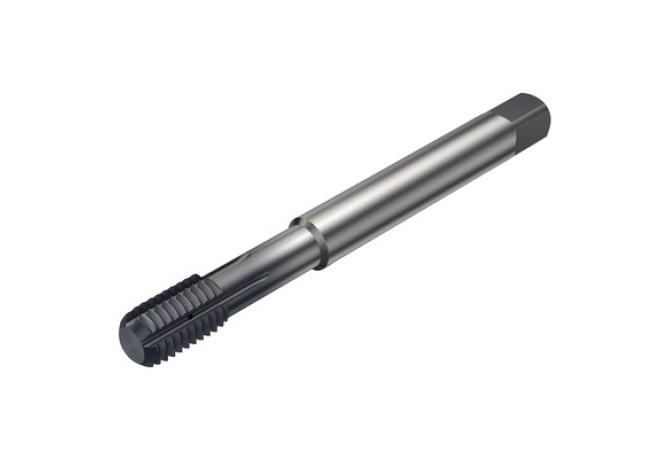

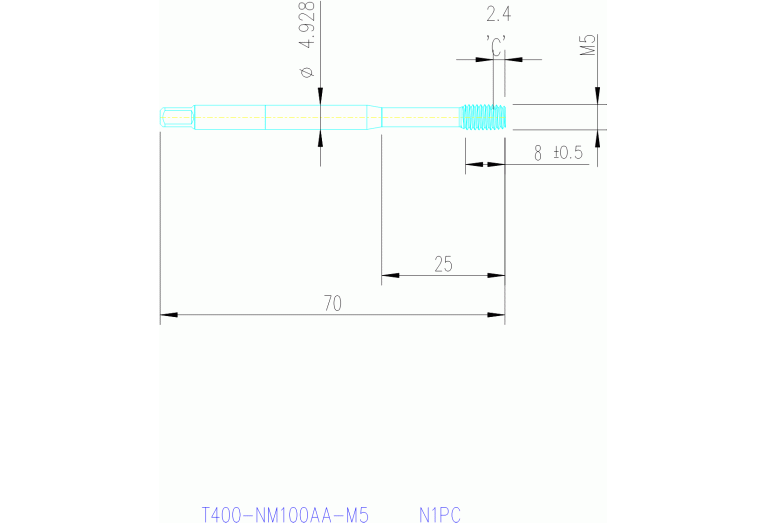

Главная Инструменты 301-04 - Thread forming tap with reinforced shank T400-NM100AA-M5 N1PC

T400-NM100AA-M5 N1PC

Артикул: 8405719

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD AlCrN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01942125

DRVS (Drive size)

3.861 mm

GRDMFG (Grade manufacturers designation)

N1PC

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R1940$$$$

LDRED (Neck length)

25 mm

LOC-03 ISO

ZYL21R1940$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0194

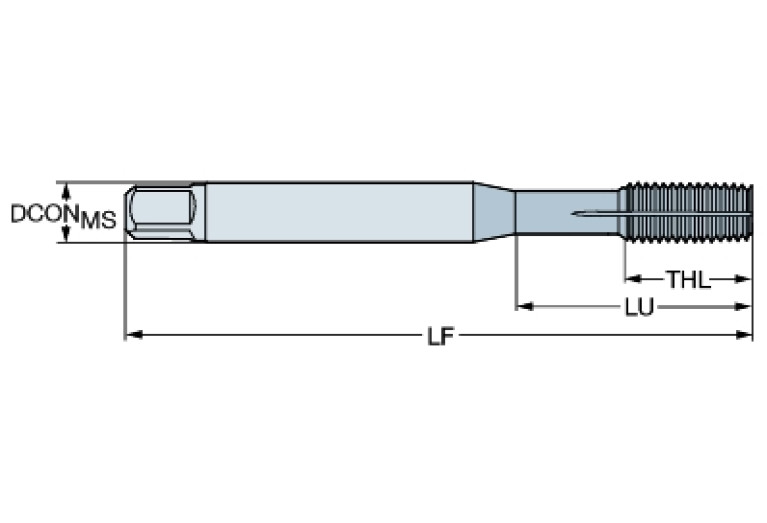

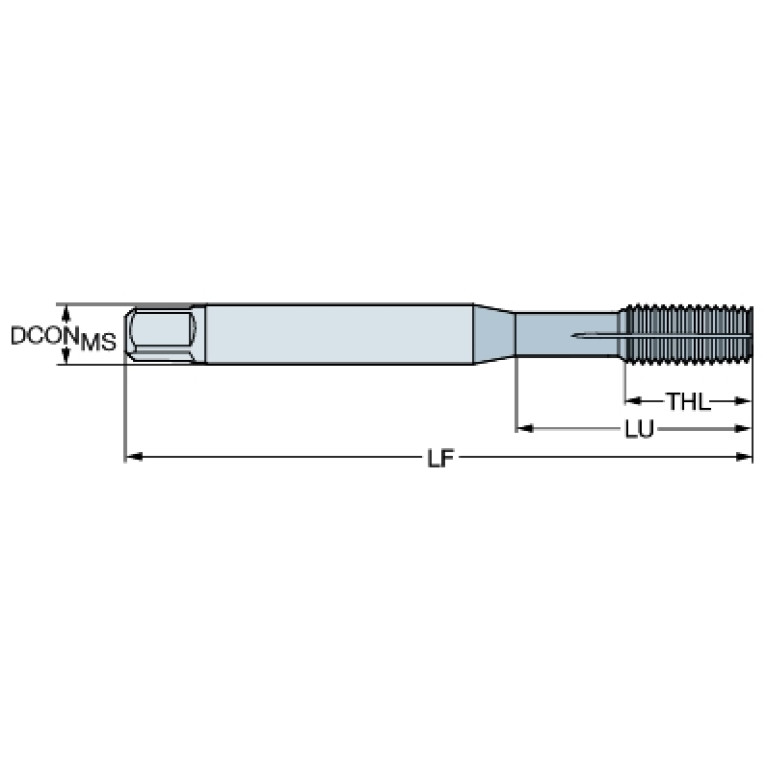

LOC-03 (DCONMS Diameter)

4.928 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01942125

LS (Shank length)

21 mm

Materials

P,M,N,S

NOF (Flute count)

OAL (Overall length)

70 mm

PLCD (Gate diameter)

4.65 mm

TCL (Tap chamfer length)

1.578 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

5 mm

THFT (Thread form type)

THL (Thread cutting part length)

8 mm

THOD (Thread designation)

M5x0.8-6HX

TP (Thread pitch)

0.8 mm

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.012 kg
