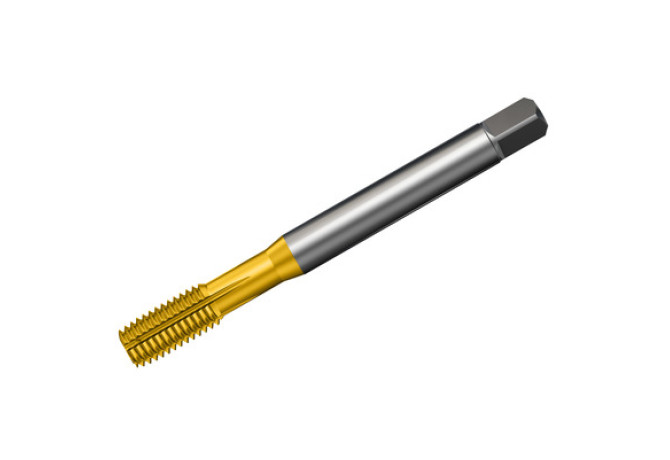

Главная Инструменты 301-04 - Thread forming tap with reinforced shank E302M8

E302M8

Артикул: 6181246

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00802105

DN (Neck diameter)

6 mm

DRVS (Drive size)

6.2 mm

GRDMFG (Grade manufacturers designation)

S9G2

GRDPRIO (Standard designation of the grade main application)

HSS-E

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F8000h$09

LDRED (Neck length)

35 mm

LOC-03 ISO

ZYL21F8000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0080

LOC-03 (DCONMS Diameter)

8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802105

LS (Shank length)

24 mm

Materials

P,M,N,S

NOF (Flute count)

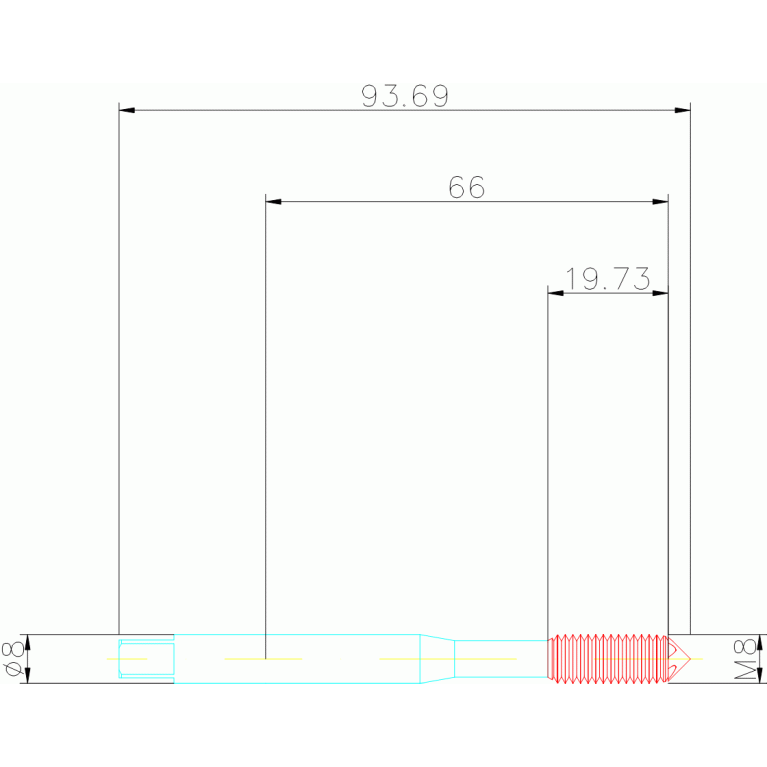

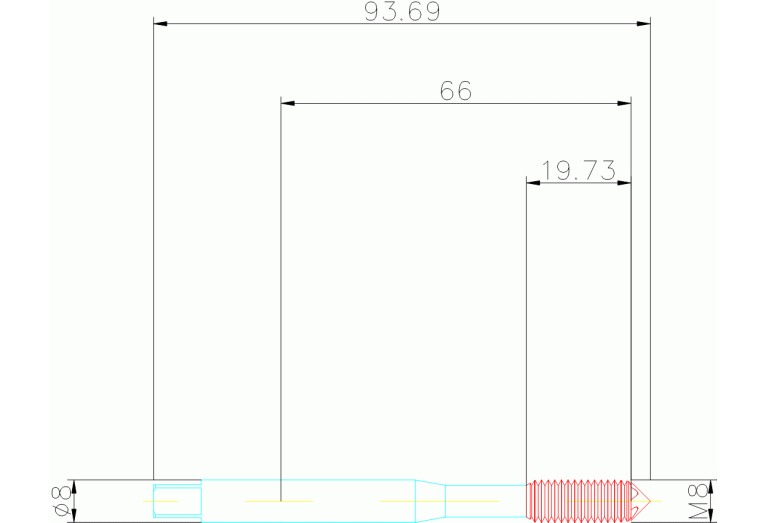

OAL (Overall length)

93.69 mm

PLCD (Gate diameter)

7.4 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

2.455 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

8 mm

THFT (Thread form type)

THL (Thread cutting part length)

18 mm

THOD (Thread designation)

M8x1.25-6HX

TP (Thread pitch)

1.25 mm

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.036 kg
