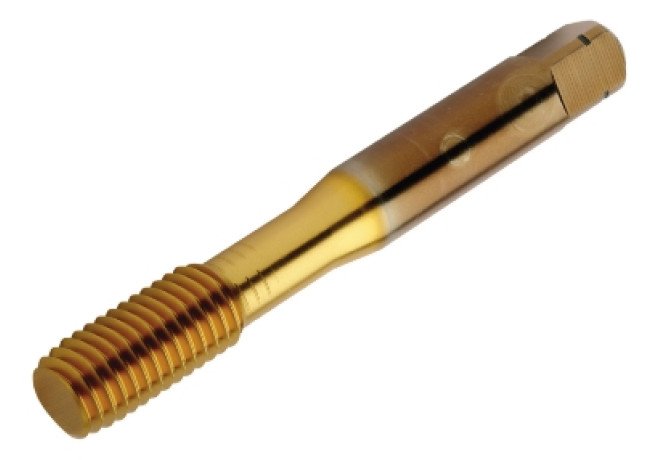

Главная Инструменты 301-04 - Thread forming tap with reinforced shank E091M5

E091M5

Артикул: 6181964

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

Constant Constant

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00502105

DN (Neck diameter)

3.75 mm

GRDMFG (Grade manufacturers designation)

HSS-PM Con

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F5000h$09

LDRED (Neck length)

21.5 mm

LOC-03 ISO

ZYL21F5000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0050

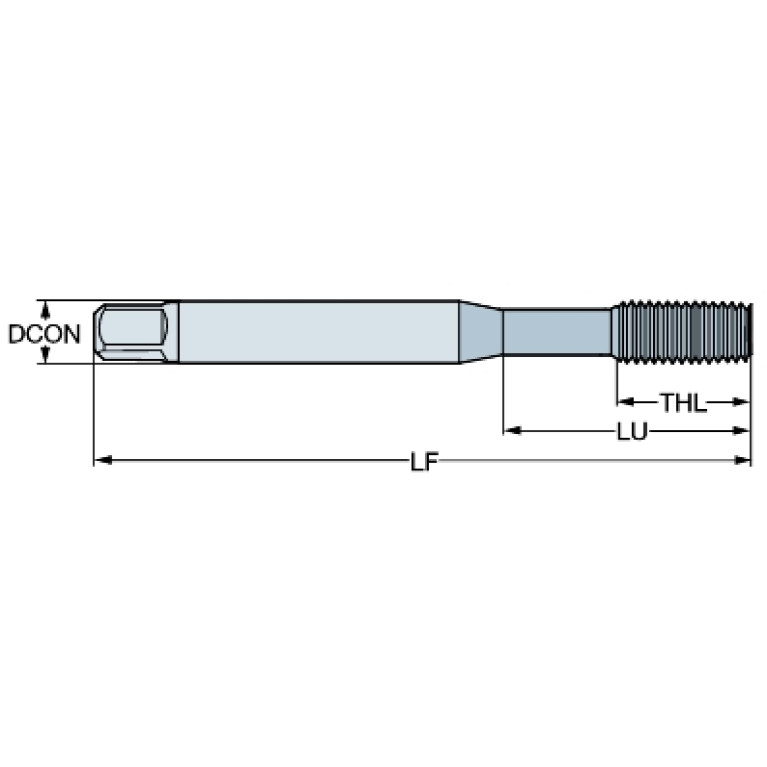

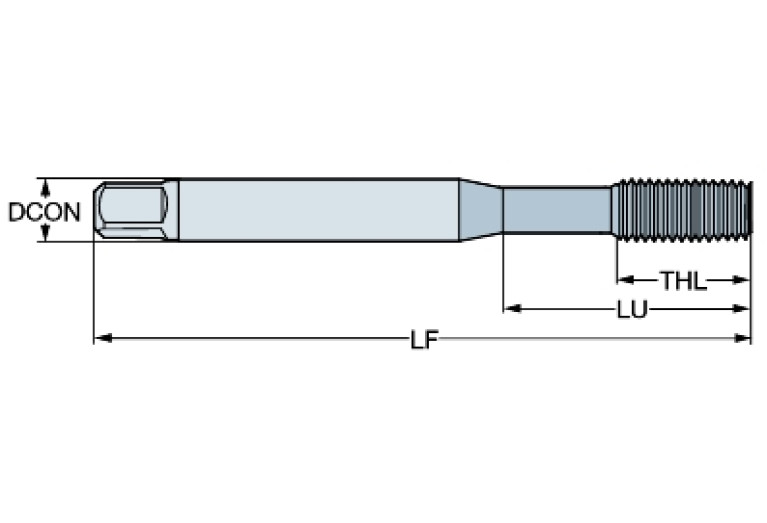

LOC-03 (DCONMS Diameter)

5 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00502105

LS (Shank length)

22 mm

NOF (Flute count)

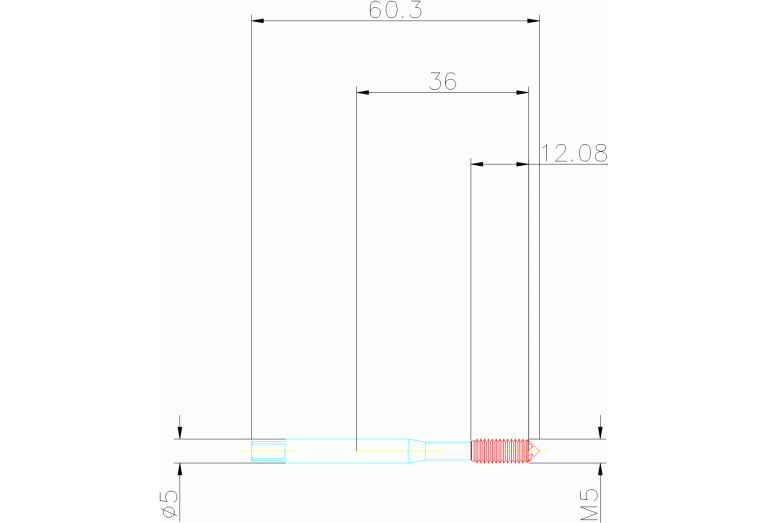

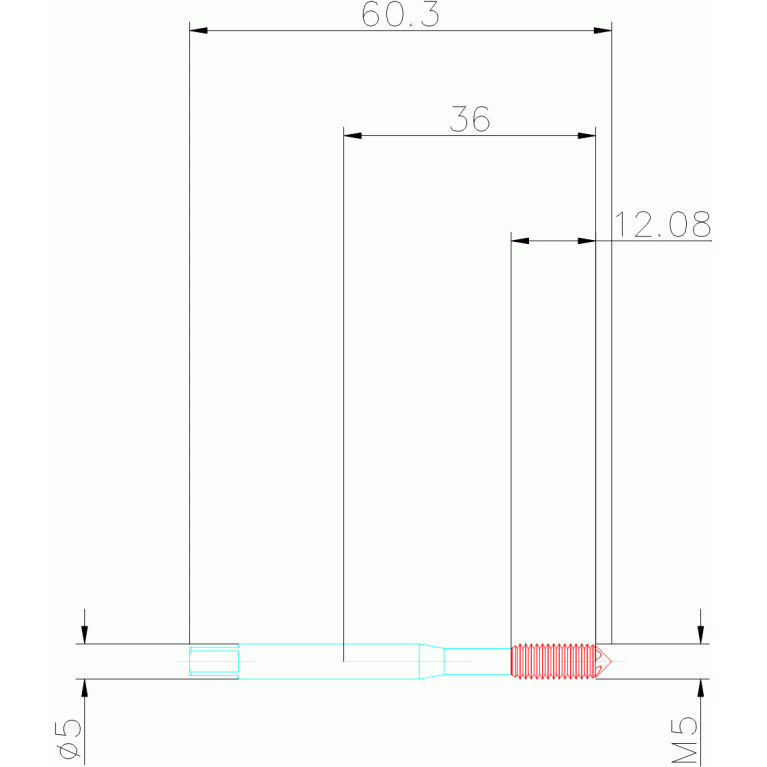

OAL (Overall length)

60.3 mm

OVERHANG LENGTH (Overhang length)

36 mm

PLCD (Gate diameter)

4.6 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.472 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

5 mm

THFT (Thread form type)

THL (Thread cutting part length)

11 mm

THOD (Thread designation)

M5x0.8-6HX

TP (Thread pitch)

0.8 mm

TTPID (Tap type identifier)

4 - Forming tap

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.011 kg
