Главная Инструменты 405-08 - Cylindrical clamping sleeve 416.2-L25-32

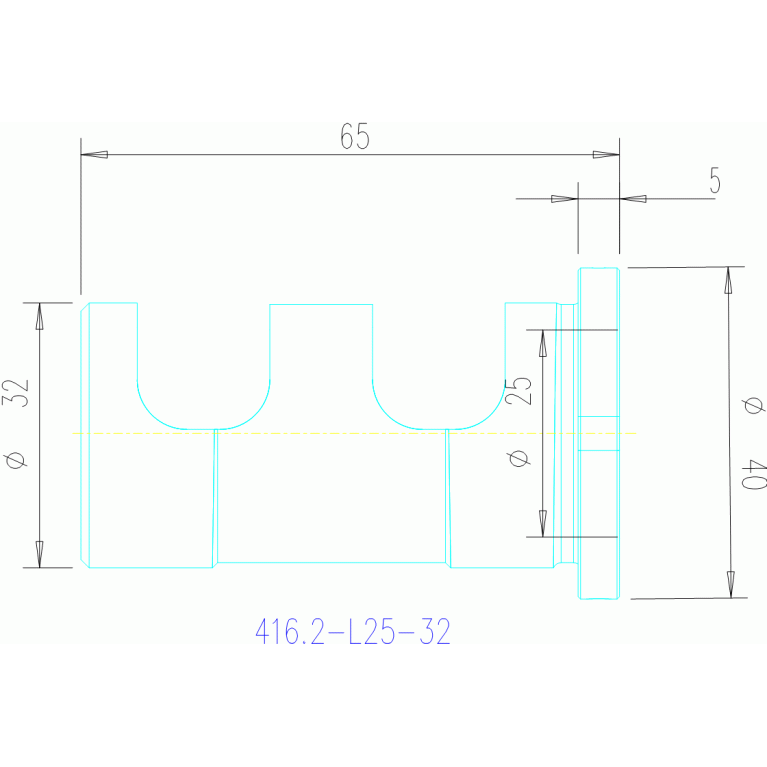

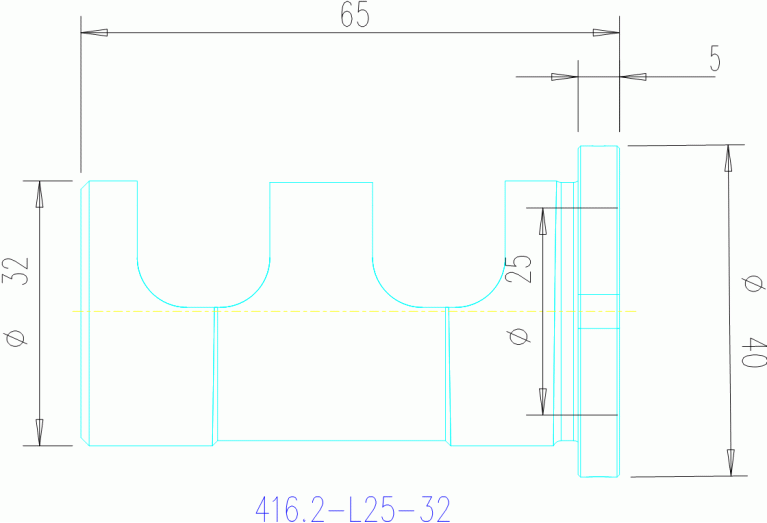

416.2-L25-32

Артикул: 5761113

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

40 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CZCWS (Connection size code)

0250

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL03201105

Interface codes

J6 / J61

ISO

ZYL11G3200h$06

LCOL (Collet length)

61.5 mm

LOC-01 ISO

ZYL11G2500****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

0 Metric

LOC-01 (CZCWS Connection size code)

0250

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02501105

LOC-02 ISO

ZYL11R9842****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

0 Metric

LOC-02 (CZCWS Connection size code)

0250

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL09841125

LOC-03 ISO

ZYL11G3200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201105

LSCX (Clamping length maximum)

60 mm

OAL (Overall length)

65 mm

SEALP (Sealing)

0 - Without sealing

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.153 kg
