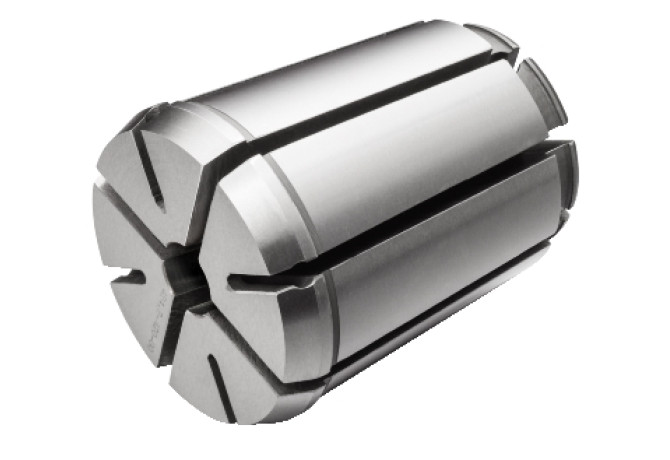

Главная Инструменты 405-01 - Double angle collet 424.2-420-03

424.2-420-03

Артикул: 5761258

В наличии

0 ₽

В корзину

Описание

Характеристики

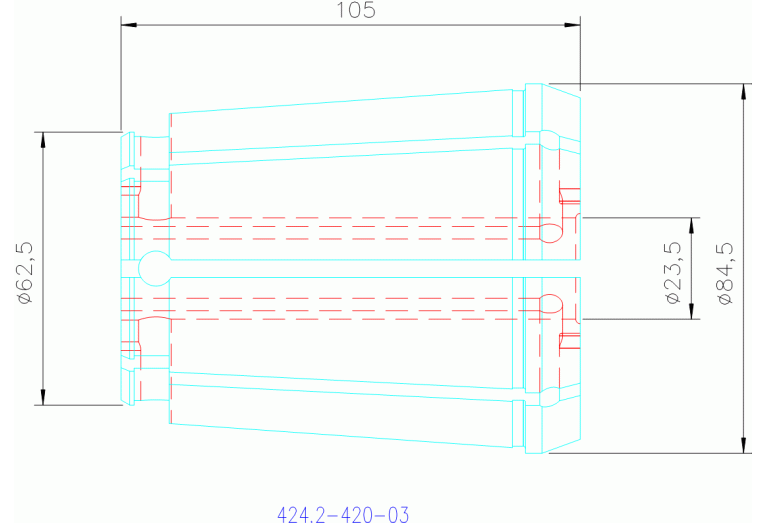

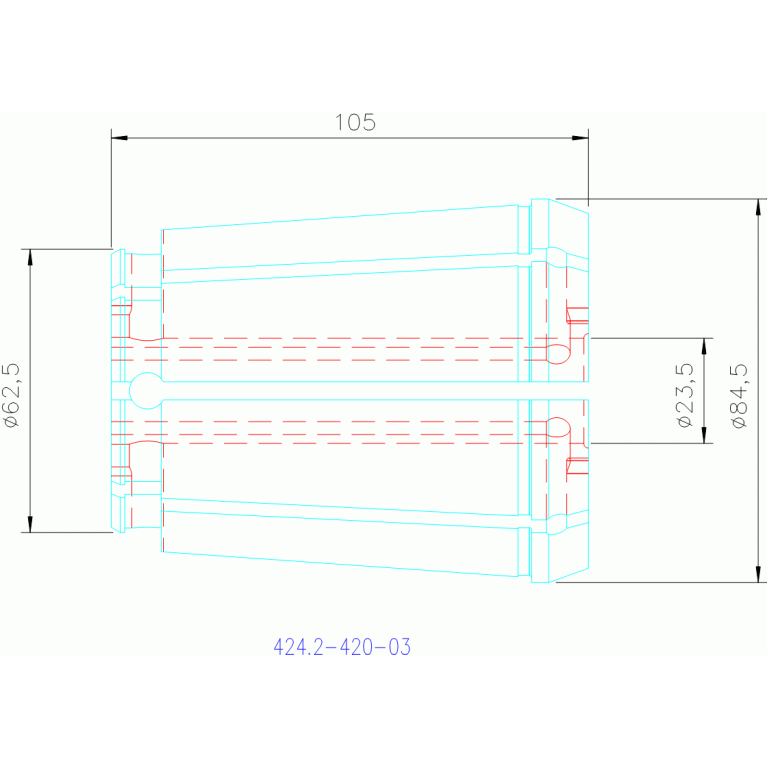

BD (Body diameter)

84.5 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CZCWS (Connection size code)

0235

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SZD08100185

Interface codes

J6 / J61

ISO

SZD01C0810$$$$

LOC-01 ISO

ZYL01G2350****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

0 Metric

LOC-01 (CZCWS Connection size code)

0235

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02350105

LOC-02 ISO

ZYL01R9251****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

0 Metric

LOC-02 (CZCWS Connection size code)

0235

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL02352005

LOC-03 ISO

SZD01C0810$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SZD Collet adapter DIN / ISO

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0810

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD08100185

LSCX (Clamping length maximum)

105 mm

OAL (Overall length)

105 mm

SEALP (Sealing)

0 - Without sealing

WT (Weight of item)

2.74 kg
