Главная Инструменты 405-01 - Double angle collet 393.14-40 140

393.14-40 140

Артикул: 5760472

В наличии

0 ₽

В корзину

Описание

Характеристики

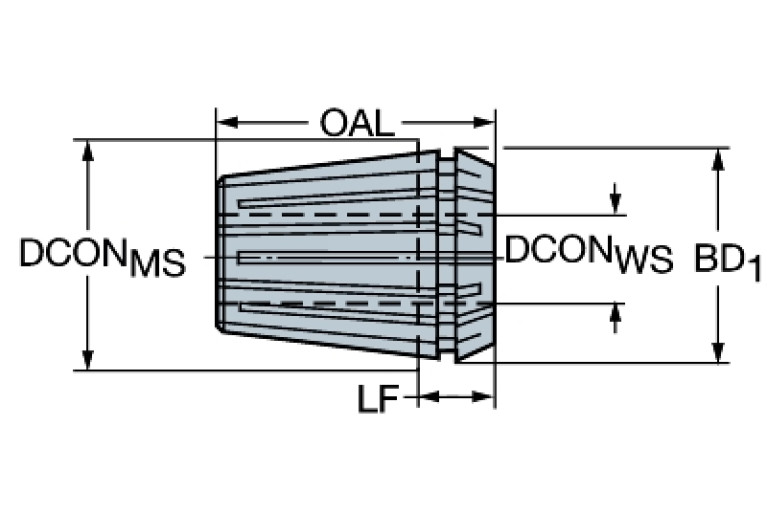

BD (Body diameter)

41 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CZCWS (Connection size code)

0130

DCBN (Connection bore diameter minimum)

13 mm

DCBX (Connection bore diameter maximum)

14 mm

Delivery state valid from

12/1/2023

DIN

SZD04000295

Interface codes

J6 / J61

ISO

SZD02C0400$$$$

LCOL (Collet length)

31.34 mm

LOC-01 ISO

ZYL01G1300****ZYL01G1400****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0130

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01300116ZYL01400116

LOC-02 ISO

ZYL01R5118****ZYL01R5511****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0130

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01302015ZYL01402015

LOC-03 ISO

SZD02C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SZD Collet adapter DIN / ISO

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000295

LSCX (Clamping length maximum)

46 mm

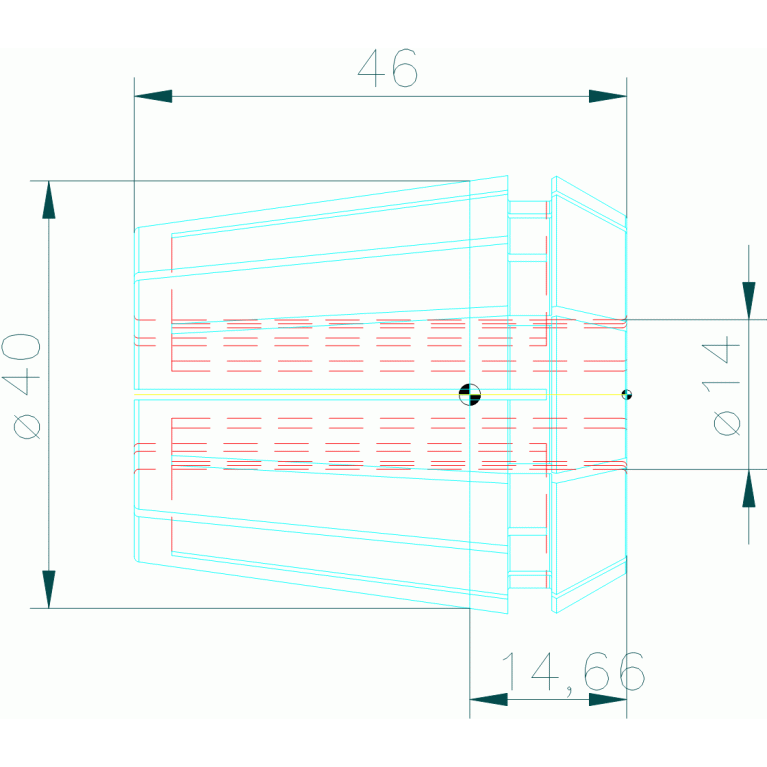

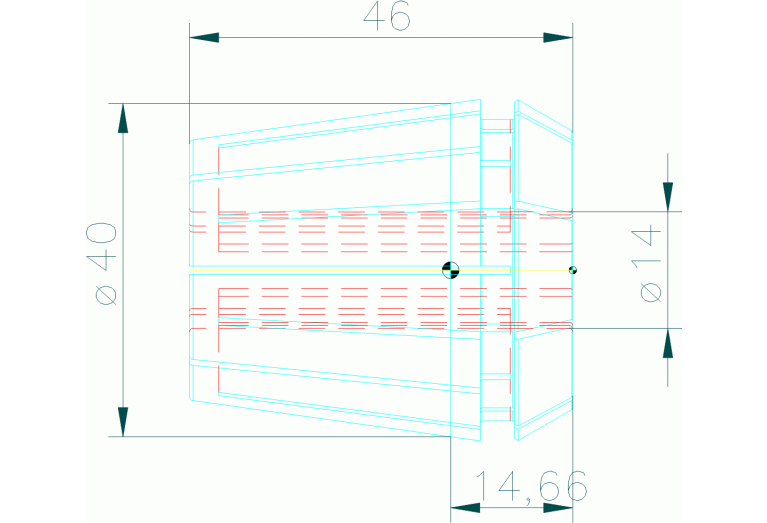

OAL (Overall length)

46 mm

SEALP (Sealing)

1 - With sealing

WT (Weight of item)

0.281 kg
